MXL8-PW27-0000
LED LUXEON WARM WHITE 2700K 4SMDManufacturer: Lumileds
Categories: LED White Lighting
Quality Control: Learn More

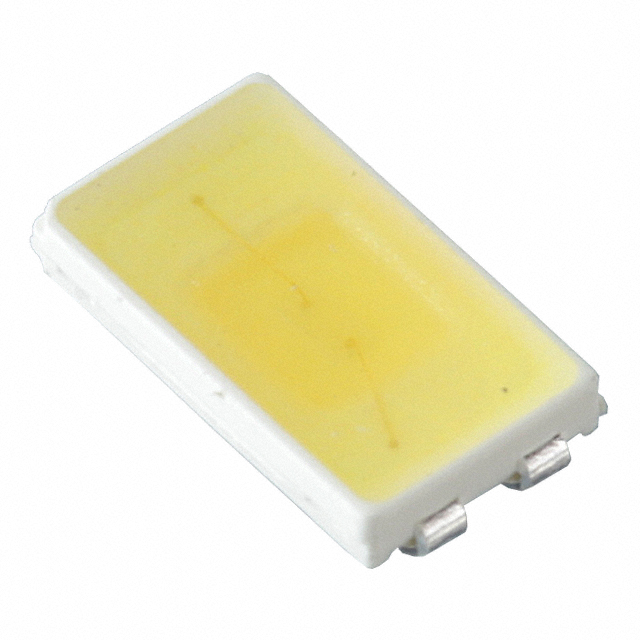

Lumileds LUXEON 5630 series white LED, part number MXL8-PW27-0000. This warm white LED features a Correlated Color Temperature (CCT) of 2700K and a Color Rendering Index (CRI) of 80, providing excellent color rendition. Designed for surface mounting, it utilizes a 4-SMD, Flat Lead Exposed Pad package (5630) measuring 5.60mm x 3.00mm. The typical forward voltage is 3.1V at a test current of 100mA, delivering a luminous flux of 32 lumens and an efficacy of 103 lm/W. It has a maximum forward current of 150mA and a wide viewing angle of 120°. This component is suitable for general illumination and architectural lighting applications. Supplied in Tape & Reel packaging.
Additional Information
Series: LUXEON 5630RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Lead Exposed Pad |
| Color | White, Warm |
| Size / Dimension | 0.220"" L x 0.118"" W (5.60mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Current - Test | 100mA |
| Viewing Angle | 120° |
| Current - Max | 150mA |
| Supplier Device Package | 5630 |
| Lumens/Watt @ Current - Test | 103 lm/W |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 32lm (Typ) |
| Flux @ 85°C, Current - Test | - |
