MXC8-PW27-WD06
LED LUXEON WARM WHITE 2700K 3535Manufacturer: Lumileds
Categories: LED White Lighting
Quality Control: Learn More
Lumileds LUXEON 3535 2D LED, part number MXC8-PW27-WD06, delivers warm white illumination with a correlated color temperature of 2700K. This component features a typical forward voltage of 6.1V and operates at a test current of 100mA, producing 80 lumens with a luminous efficacy of 131 lm/W. The LED has a broad 115° viewing angle and a CRI of 80. Its compact 1414 (3535 Metric) package measures 0.138" L x 0.134" W (3.50mm x 3.40mm) with a seated height of 0.035" (0.90mm). Designed for surface mounting, this part is supplied on a tape and reel. The Lumileds MXC8-PW27-WD06 is suitable for general lighting applications.
Additional Information
Series: LUXEON 3535 2DRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.138"" L x 0.134"" W (3.50mm x 3.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 6.1V |
| Current - Test | 100mA |
| Viewing Angle | 115° |
| Current - Max | 200mA |
| Supplier Device Package | 3535 |
| Lumens/Watt @ Current - Test | 131 lm/W |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 80lm (Typ) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

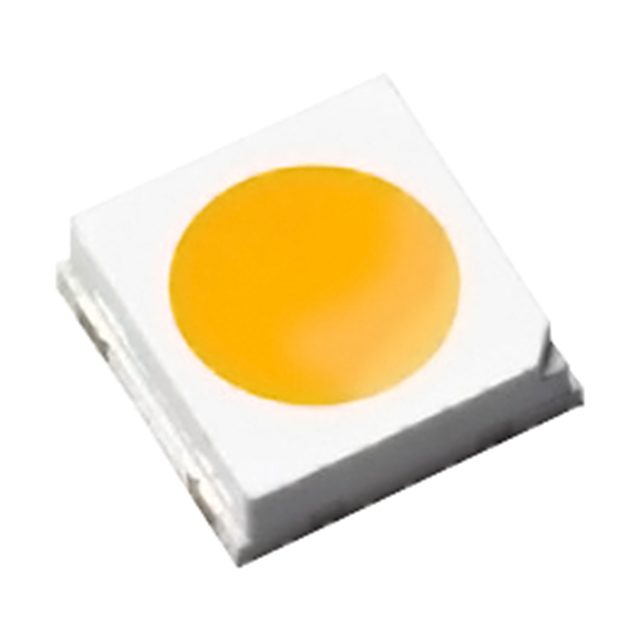

MXC7-PW40-0000
