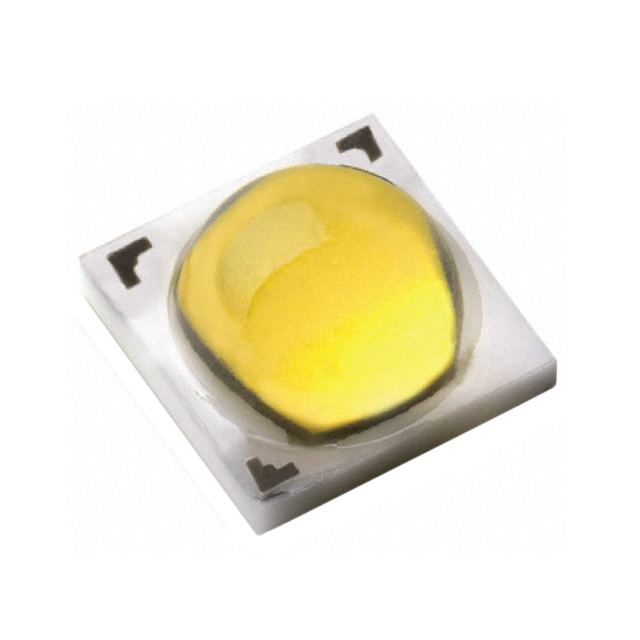

LXH8-FW30-5
LED LUXEON WARM WHITE 3000K 3SMDManufacturer: Lumileds
Categories: LED White Lighting
Quality Control: Learn More
Lumileds LUXEON T series LXH8-FW30-5 is a warm white LED designed for general lighting applications. This 3000K color temperature LED features a 5-step MacAdam ellipse for tight chromaticity control. It operates with a typical forward voltage of 2.8V and is rated for up to 1.2A maximum current, with typical testing at 700mA delivering 197 lumens at 85°C for 101 lm/W efficacy. The 120° viewing angle and 2-SMD, No Lead Exposed Pad package, measuring 3.70mm x 3.70mm, facilitate surface mounting for efficient thermal management. This component is commonly utilized in architectural, commercial, and residential lighting solutions.
Additional Information
Series: LUXEON TRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Color | White, Warm |
| Size / Dimension | 0.146"" L x 0.146"" W (3.70mm x 3.70mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Current - Max | 1.2A |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 101 lm/W |
| Height - Seated (Max) | 0.083"" (2.12mm) |
| CCT (K) | 3000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 197lm (Typ) |
