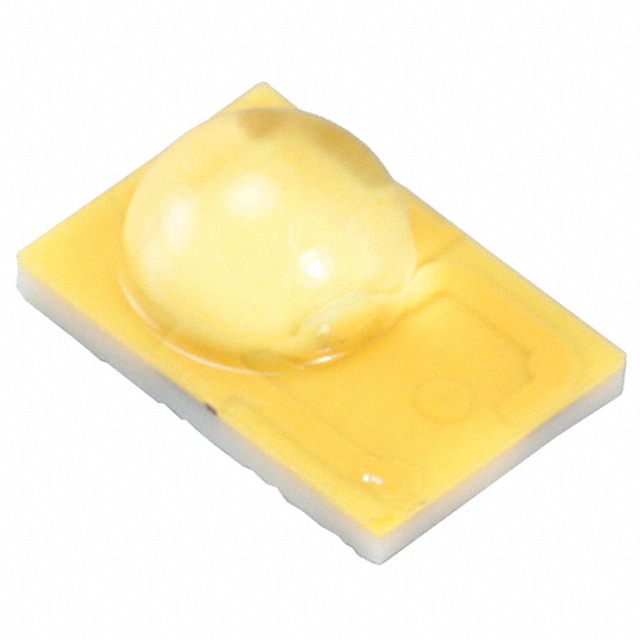

LX18-P127-3
LED LUXEON WARM WHT 2700K 4530Manufacturer: Lumileds
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting LUXEON Rebel PLUS White, Warm 2700K 3-Step MacAdam Ellipse 2.76V 350mA 120° 1812 (4532 Metric)
Additional Information
Series: LUXEON Rebel PLUSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1812 (4532 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.177"" L x 0.120"" W (4.49mm x 3.05mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.76V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | 4530 |
| Lumens/Watt @ Current - Test | 88 lm/W |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 85lm (Typ) |
Request a Quote
