L1T2-50853000CAAJ0
LED LUXEON COOL WHT 5000K 2SMDManufacturer: Lumileds
Categories: LED White Lighting
Quality Control: Learn More

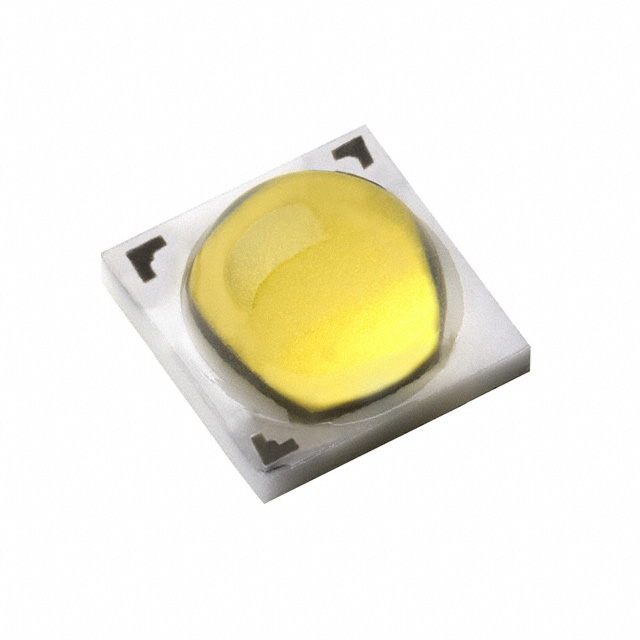

Lumileds LUXEON TX Series LED, part number L1T2-50853000CAAJ0, offers cool white illumination with a Correlated Color Temperature (CCT) of 5000K, precisely controlled to a 3-step MacAdam ellipse. This surface mount component, housed in a 2-SMD, No Lead Exposed Pad package, delivers a typical forward voltage of 2.8V at a test current of 350mA. Featuring a broad 120° viewing angle and a high Color Rendering Index (CRI) of 85, it is suitable for applications demanding accurate color representation. The device dimensions are 0.146" L x 0.146" W (3.70mm x 3.70mm) with a maximum seated height of 0.083" (2.12mm). This LED is supplied on a Tape & Reel (TR) for efficient manufacturing processes. Its robust performance characteristics make it a reliable choice for general lighting, architectural lighting, and automotive lighting applications.
Additional Information
Series: LUXEON TXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Color | White, Cool |
| Size / Dimension | 0.146"" L x 0.146"" W (3.70mm x 3.70mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1.05A |
| Supplier Device Package | 2-SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.083"" (2.12mm) |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 85 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | - |
