L1HL-3590100000000
LEDSManufacturer: Lumileds
Categories: LED White Lighting
Quality Control: Learn More

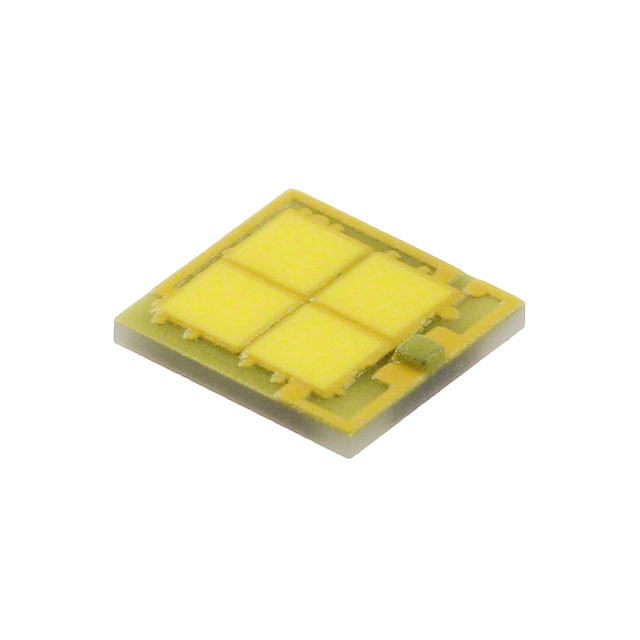

Lumileds LUXEON CSP HL1 series white warm LED, part number L1HL-3590100000000. This 0505 (1313 Metric) surface mount component offers a typical forward voltage of 2.8V and a rated maximum drive current of 700mA, with a test current of 350mA producing 80 lumens (Typ) at 85°C. The correlated color temperature is 3500K with a high Color Rendering Index (CRI) of 90, providing excellent color fidelity. With a broad 120° viewing angle and a typical luminous efficacy of 82 lm/W at the test current, this 2-CSP device is suitable for demanding lighting applications in automotive, consumer electronics, and general illumination sectors. The compact 0.054" x 0.054" (1.38mm x 1.38mm) footprint and low seated height of 0.013" (0.32mm) facilitate dense board designs. Supplied in bulk packaging.
Additional Information
Series: LUXEON CSP HL1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 0505 (1313 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.054"" L x 0.054"" W (1.38mm x 1.38mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 700mA |
| Supplier Device Package | 2-CSP |
| Lumens/Watt @ Current - Test | 82 lm/W |
| Height - Seated (Max) | 0.013"" (0.32mm) |
| CCT (K) | 3500K |
| CRI (Color Rendering Index) | 90 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 80lm (Typ) |
