L152-4070502400000
LED LUXEON NEUT WHT 4000K 5258Manufacturer: Lumileds
Categories: LED White Lighting
Quality Control: Learn More

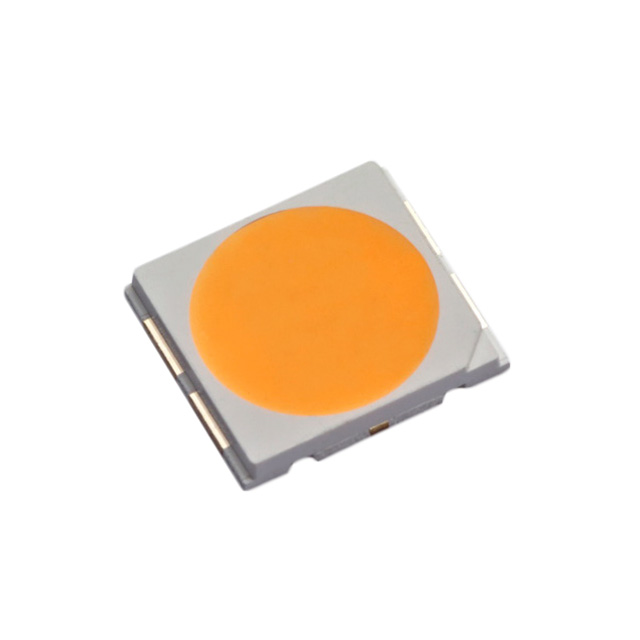

Lumileds LUXEON 5258 series mid-power LED, part number L152-4070502400000. This neutral white LED features a correlated color temperature (CCT) of 4000K with a typical CRI of 70. Designed for surface mounting, it utilizes a 4-SMD package with an exposed pad and a 115° viewing angle. The LED operates at a test current of 160mA, delivering a typical luminous flux of 590lm and a luminous efficacy of 154 lm/W. The forward voltage (Vf) is typically 24V, with a maximum forward current of 240mA. Dimensions are 5.20mm L x 5.80mm W, with a seated height of 0.80mm. This component is suitable for general lighting applications. Packaged in Tape & Reel (TR).
Additional Information
Series: LUXEON 5258RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Color | White, Neutral |
| Size / Dimension | 0.205"" L x 0.228"" W (5.20mm x 5.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 24V |
| Current - Test | 160mA |
| Viewing Angle | 115° |
| Current - Max | 240mA |
| Supplier Device Package | 5258 |
| Lumens/Watt @ Current - Test | 154 lm/W |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 590lm (Typ) |
| Flux @ 85°C, Current - Test | - |
