LXZ1-PL01
LED LUXEON Z AMBER 590NM SMDManufacturer: Lumileds
Categories: LED Color Lighting
Quality Control: Learn More
LED Lighting Color LUXEON Z Amber 590nm (585nm ~ 595nm) 0705 (1713 Metric)
Additional Information
Series: LUXEON ZRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0705 (1713 Metric) |
| Color | Amber |
| Wavelength | 590nm (585nm ~ 595nm) |
| Size / Dimension | 0.067"" L x 0.051"" W (1.70mm x 1.30mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Current - Test | 500mA |
| Viewing Angle | 145° |
| Current - Max | 700mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 52 lm/W |
| Height - Seated (Max) | 0.026"" (0.66mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 56lm (48lm ~ 64lm) |
Request a Quote
Clients Also Buy

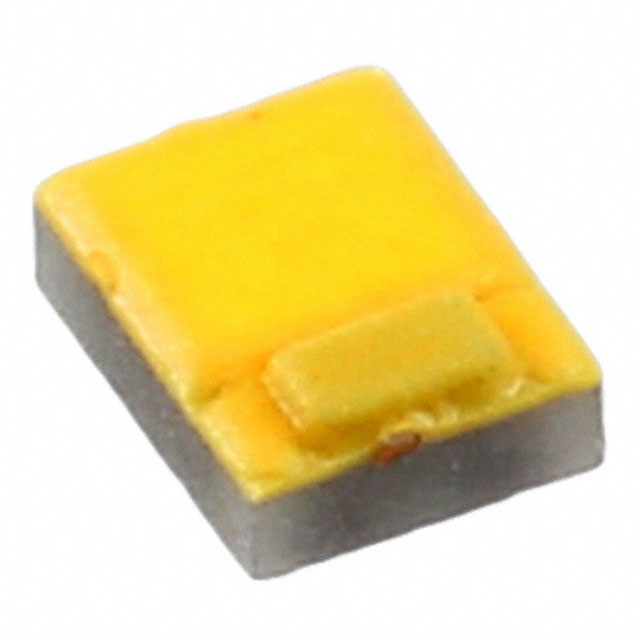

LXZ1-2780-3
