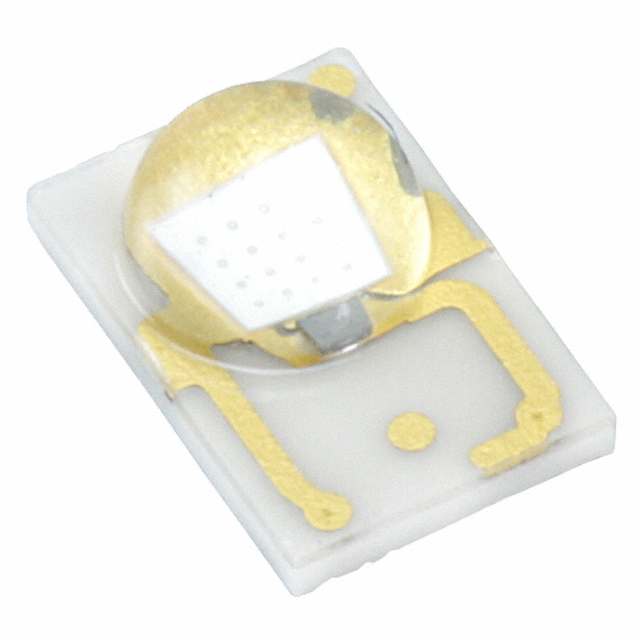

LXML-PR01-0500
LED LUXEON REBEL BLUE 448NM SMDManufacturer: Lumileds
Categories: LED Color Lighting
Quality Control: Learn More
LED Lighting Color LUXEON Rebel Color Blue 448nm (Typ) 1812 (4532 Metric)
Additional Information
Series: LUXEON Rebel ColorRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1812 (4532 Metric) |
| Color | Blue |
| Wavelength | 448nm (Typ) |
| Size / Dimension | 0.177"" L x 0.120"" W (4.49mm x 3.05mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Current - Test | 350mA |
| Viewing Angle | 125° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 520mW (Typ) |
