L1SP-RYL0003500000
LED SUNPLUS 35 BLUE SMDManufacturer: Lumileds
Categories: LED Color Lighting
Quality Control: Learn More

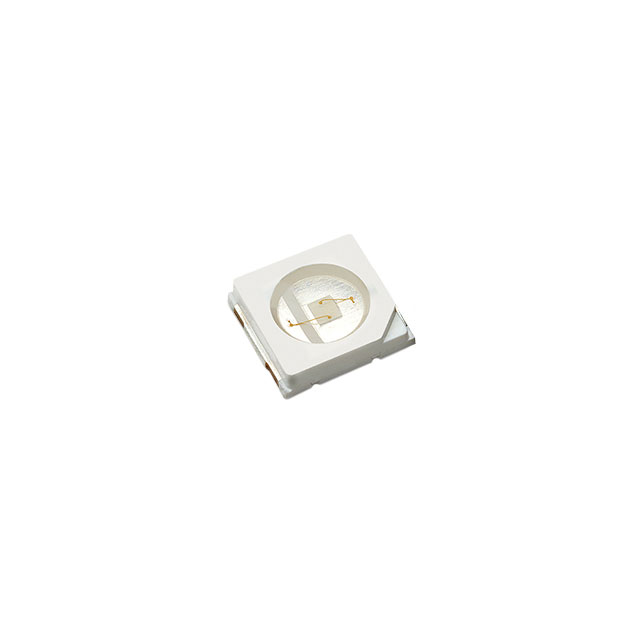

Lumileds LUXEON SunPlus 35 Horticulture Series Blue SMD LED, part number L1SP-RYL0003500000. This surface mount device features a 1414 (3535 Metric) package with dimensions of 0.138" L x 0.134" W (3.50mm x 3.40mm) and a seated height of 0.031" (0.80mm). It operates with a typical forward voltage of 3.05V and a maximum forward current of 200mA, with a test current of 100mA. The viewing angle is 115°. This component is commonly utilized in horticultural lighting applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: LUXEON SunPlus 35 HorticultureRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | Blue |
| Wavelength | - |
| Size / Dimension | 0.138"" L x 0.134"" W (3.50mm x 3.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.05V |
| Current - Test | 100mA |
| Viewing Angle | 115° |
| Current - Max | 200mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
Request a Quote
Clients Also Buy
LXZ1-PH01
LED LUXEON Z RED-ORG 615NM SMD

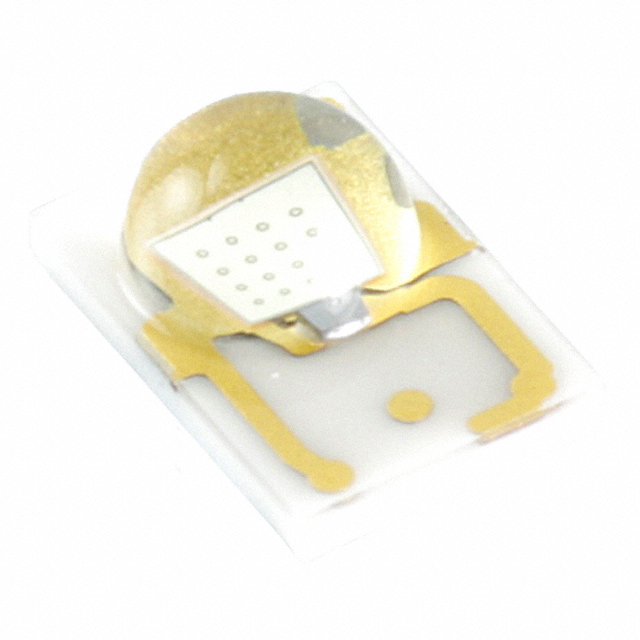

LXML-PB01-0040
