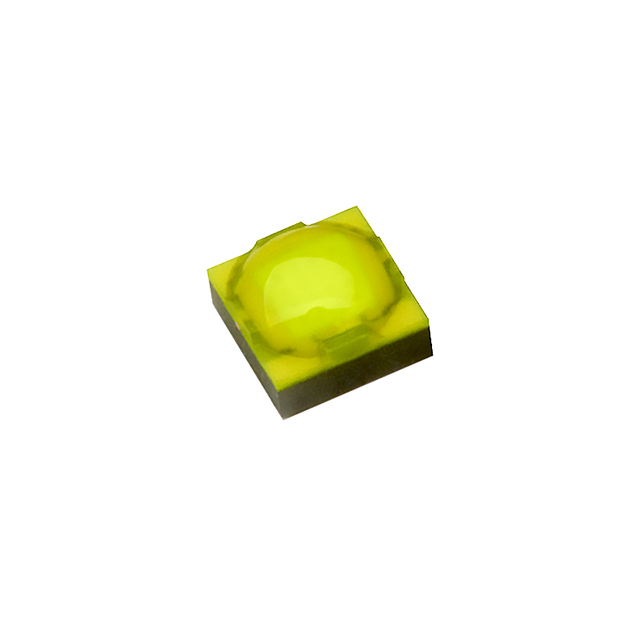

L1SP-LME0002000000
LED SUNPLUS 20 LIME SMDManufacturer: Lumileds
Categories: LED Color Lighting
Quality Control: Learn More
LED Lighting Color LUXEON SunPlus 20 Horticulture Lime 0707 (1919 Metric)
Additional Information
Series: LUXEON SunPlus 20 HorticultureRoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0707 (1919 Metric) |
| Color | Lime |
| Wavelength | - |
| Size / Dimension | 0.079"" L x 0.079"" W (2.00mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.75V |
| Current - Test | 350mA |
| Viewing Angle | 145° |
| Current - Max | 1.225A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.059"" (1.50mm) |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | - |
Request a Quote
