L1CU-PCA1000000000
LED LUXEON CZ AMBER 3SMDManufacturer: Lumileds
Categories: LED Color Lighting
Quality Control: Learn More
LED Lighting Color LUXEON CZ Amber 2-SMD, No Lead Exposed Pad
Additional Information
Series: LUXEON CZRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Color | Amber |
| Wavelength | - |
| Size / Dimension | 0.079"" L x 0.079"" W (2.00mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.75V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1.05A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 81 lm/W |
| Height - Seated (Max) | 0.036"" (0.92mm) |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 78lm (Typ) |
Request a Quote
Clients Also Buy
L1CU-DRD1000000000
DEEP RED
L1CU-FRD1000000000
FAR RED

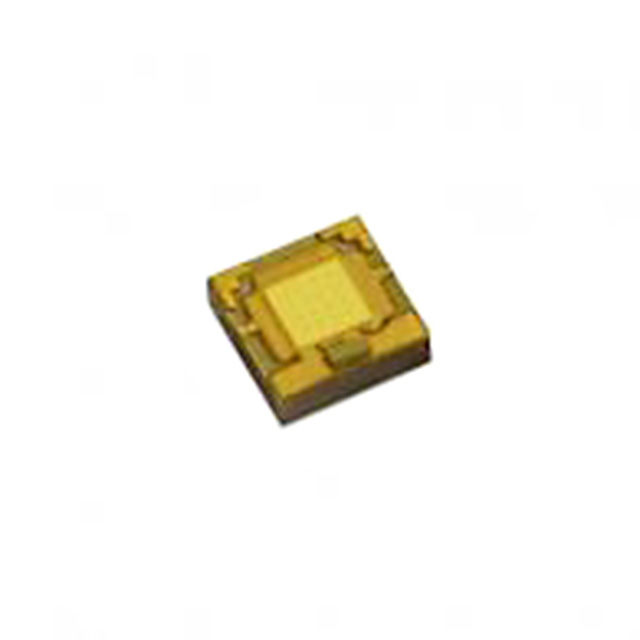

L1CU-LME1000000000
