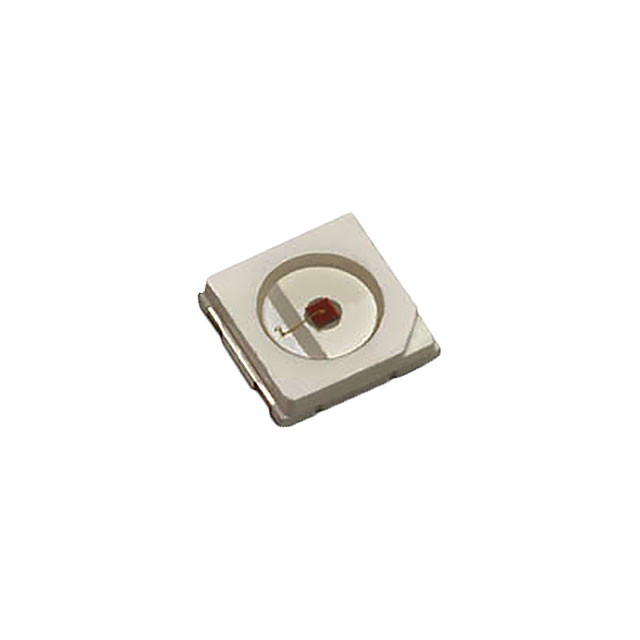

L135-O615003500001
LED LUXEON 3535L ORG 615NM 3535Manufacturer: Lumileds
Categories: LED Color Lighting
Quality Control: Learn More
Lumileds LUXEON 3535L Orange LED, part number L135-O615003500001, delivers a 615nm wavelength with a typical luminous flux of 16lm at 100mA test current. This surface mount component, housed in a 3535 metric package (1414), operates with a typical forward voltage of 2.1V and a maximum forward current of 125mA. Key performance metrics include 76 lm/W luminous efficacy at 100mA and 25°C. The device features a wide 115° viewing angle and a low profile of 0.90mm. Its dimensions are 3.50mm x 3.40mm. This component is commonly utilized in general lighting and specialty illumination applications. It is supplied on Tape & Reel.
Additional Information
Series: LUXEON 3535LRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | Orange |
| Wavelength | 615nm (610nm ~ 620nm) |
| Size / Dimension | 0.138"" L x 0.134"" W (3.50mm x 3.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 100mA |
| Viewing Angle | 115° |
| Current - Max | 125mA |
| Supplier Device Package | 3535 |
| Lumens/Watt @ Current - Test | 76 lm/W |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 16lm (Typ) |
Request a Quote
Clients Also Buy
L135-O615003500000
LED LUXEON 3535L ORG 615NM 3535
L135-R625003500000
LED LUXEON 3535L RED 625NM 3535

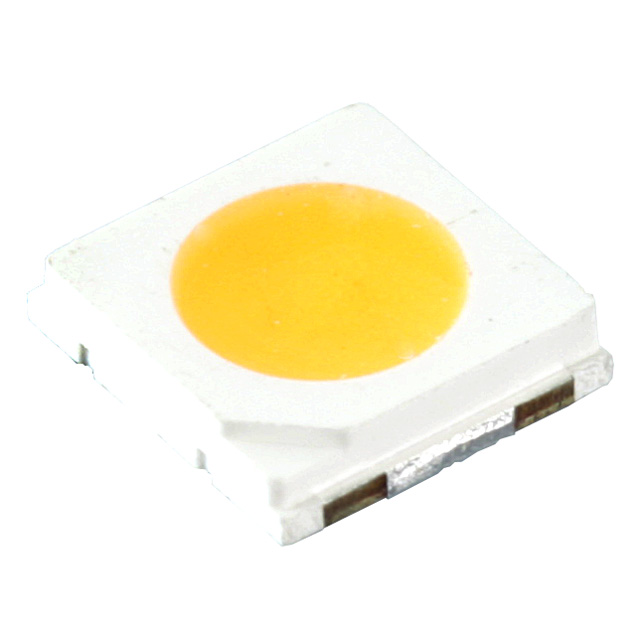

MXA9-PW27-0000
