LXS8-PW35
LED MOD LUXEON S1000 WH SQManufacturer: Lumileds
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The Lumileds LUXEON S1000 series LED module, part number LXS8-PW35, is a square white warm LED module designed for high-performance lighting applications. Featuring a 3500K color temperature and an 80 CRI, this module delivers 1420 lumens typical at a 700mA test current, with a luminous efficacy of 79 lm/W at 85°C. The module operates with a forward voltage of 25.6V and has a maximum continuous current rating of 900mA. Its compact dimensions are 13.87mm L x 12.87mm W with a height of 6.09mm, housing an 8.06mm diameter Light Emitting Surface (LES) and a domed lens. The viewing angle is 105°. This component is commonly utilized in architectural lighting, retail lighting, and general illumination systems where precise color rendering and high light output are critical. It is supplied in trays.
Additional Information
Series: LUXEON S1000RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 13.87mm L x 12.87mm W |
| Type | LED Module |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 25.6V |
| Height | 6.09mm |
| Current - Test | 700mA |
| Viewing Angle | 105° |
| Lens Type | Domed |
| Current - Max | 900mA |
| Lumens/Watt @ Current - Test | 79 lm/W |
| CCT (K) | 3500K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 8.06mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1420lm (Typ) |
Request a Quote
Clients Also Buy

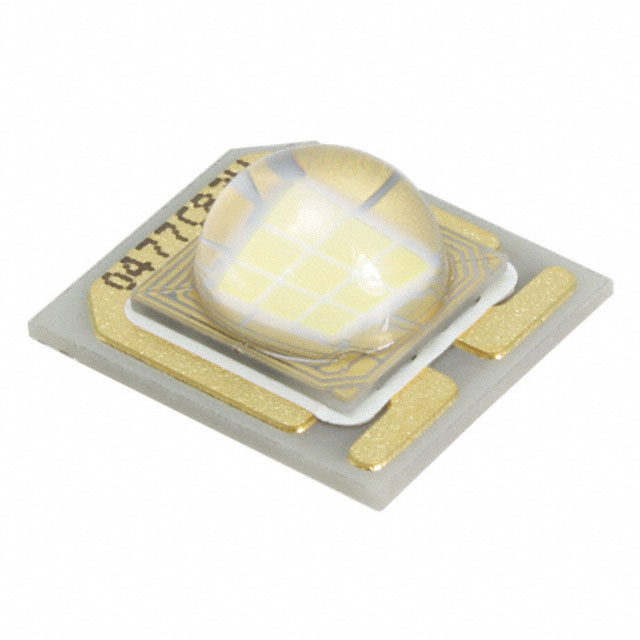

LXS8-PW27
LED MOD LUXEON S1000 WH SQ
LXS8-PW30
LED MOD LUXEON S1000 WH SQ

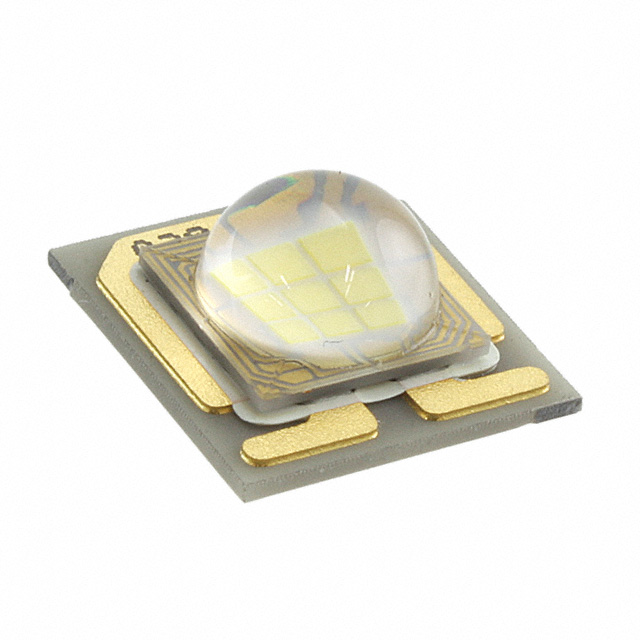

LXS8-PW40
