L2T0-4070012M00000
LED MOD LUXEON WHT RECT 4000KManufacturer: Lumileds
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

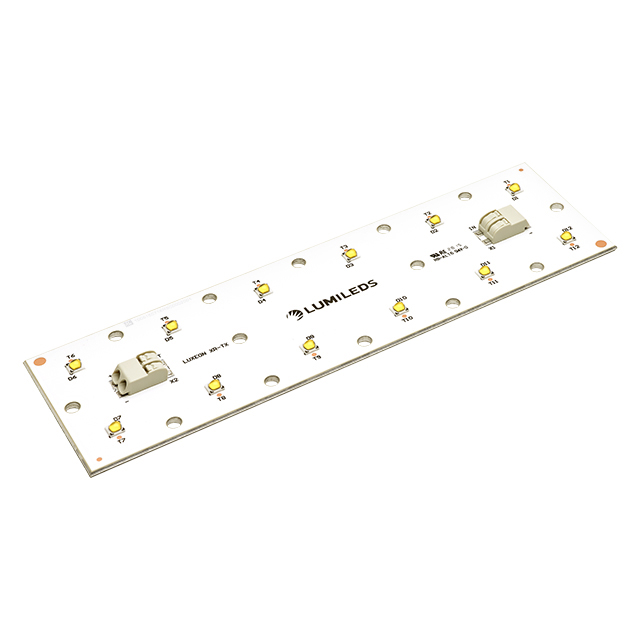

Lumileds LUXEON XR-TX L2T0-4070012M00000 is a high-performance LED module designed for demanding lighting applications. This neutral white module features a 70 CRI and a correlated color temperature (CCT) of 4000K, providing excellent light quality. The rectangular configuration and domed lens type contribute to efficient light distribution. Engineered for reliability, it operates at a typical forward voltage of 33.25V and a maximum current of 1.05A, with a tested current of 700mA yielding 138 lm/W. The module delivers a typical luminous flux of 3221 lumens at 700mA and 85°C. Its robust construction, with dimensions of 146.60mm L x 45.00mm W and a height of 6.21mm, makes it suitable for industrial, architectural, and general lighting sectors. This component is supplied in bulk packaging.
Additional Information
Series: LUXEON XR-TXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Bulk |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 146.60mm L x 45.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 33.25V |
| Height | 6.21mm |
| Current - Test | 700mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 1.05A |
| Lumens/Watt @ Current - Test | 138 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 3221lm (Typ) |
