L2M0-5070005MC3300
LED MOD LUXEON WH LNR STR 5000KManufacturer: Lumileds
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The Lumileds LUXEON XR-M L2M0-5070005MC3300 is a white, cool linear LED light strip module designed for high-performance illumination applications. Featuring a 5000K CCT and a CRI of 70, this module delivers a typical luminous flux of 5454 lumens at a forward voltage of 54.8V. It operates with a maximum current of 1.05A, offering an impressive 142 lm/W efficiency at the test current of 700mA. The module measures 198.00mm in length and 33.00mm in width with a height of 6.21mm. Its domed lens type ensures uniform light distribution. This component is commonly utilized in the automotive, industrial, and architectural lighting sectors. Packaged in trays, the L2M0-5070005MC3300 provides a robust and efficient lighting solution.
Additional Information
Series: LUXEON XR-MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 198.00mm L x 33.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 54.8V |
| Height | 6.21mm |
| Current - Test | 700mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 1.05A |
| Lumens/Watt @ Current - Test | 142 lm/W |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 5454lm (Typ) |
Request a Quote
Clients Also Buy

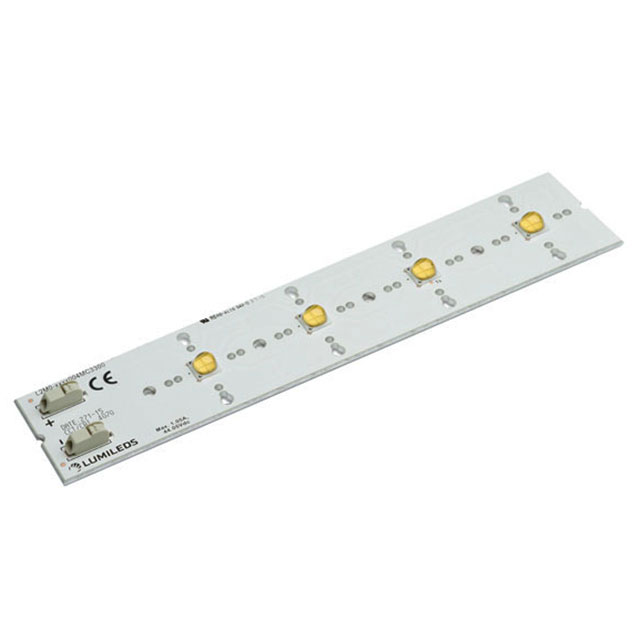

L2M0-4070004MC3300
LED MOD LUXEON WH LNR STR 4000K

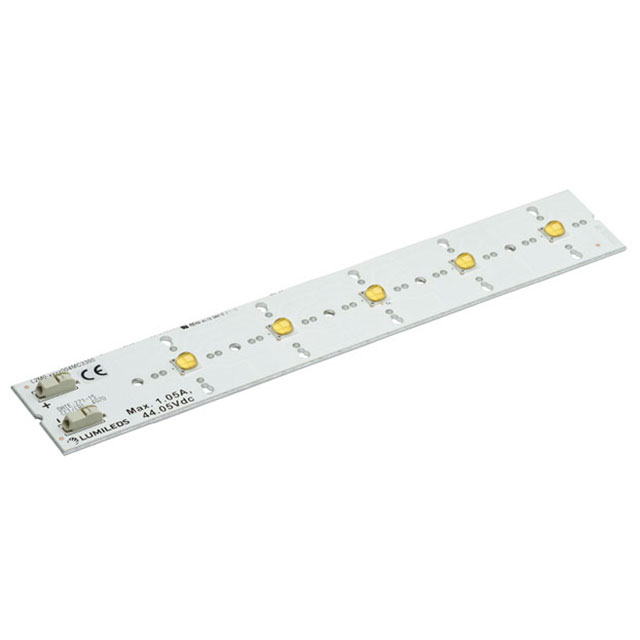

L2M0-4070005MC3300
LED MOD LUXEON WH LNR STR 4000K

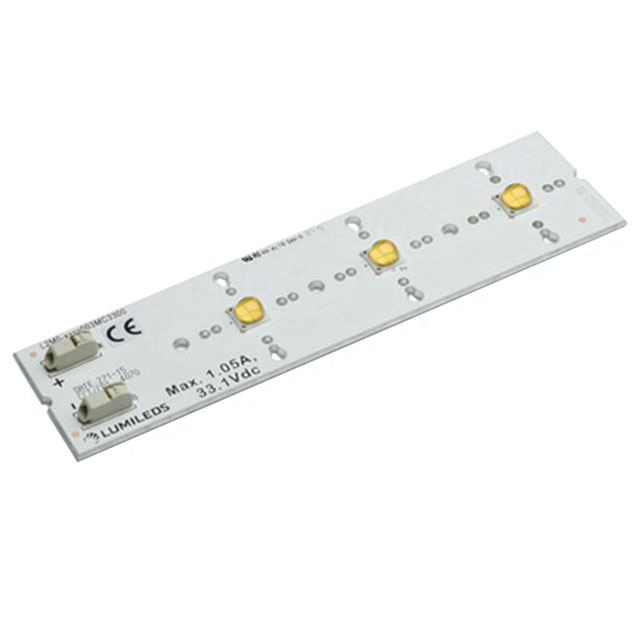

L2M0-5070003MC3300
