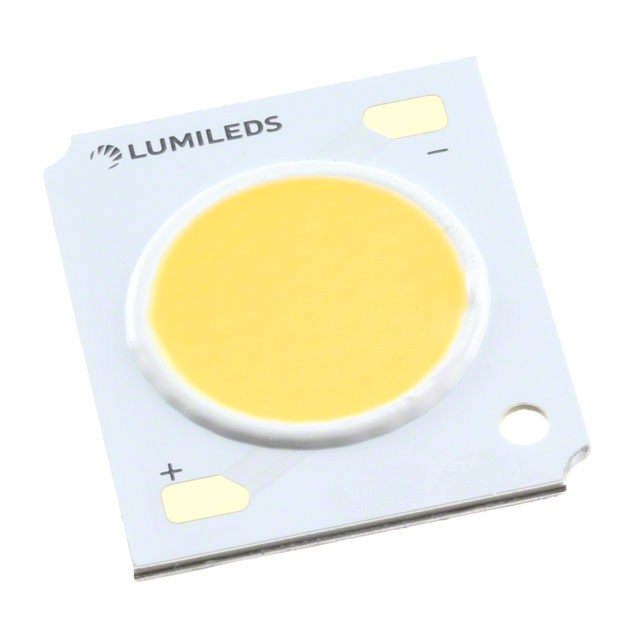

L2C6-30902L08C1500
WARM-WHITE COB 90 CRIManufacturer: Lumileds
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules Chip On Board (COB) LUXEON CS CoB Gen 2 White, Warm Square
Additional Information
Series: LUXEON CS CoB Gen 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 33.9V |
| Height | 1.60mm |
| Current - Test | 720mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.8A |
| Lumens/Watt @ Current - Test | 162 lm/W |
| CCT (K) | 3000K 2-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 14.50mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 3965lm (Typ) |
Request a Quote
Clients Also Buy

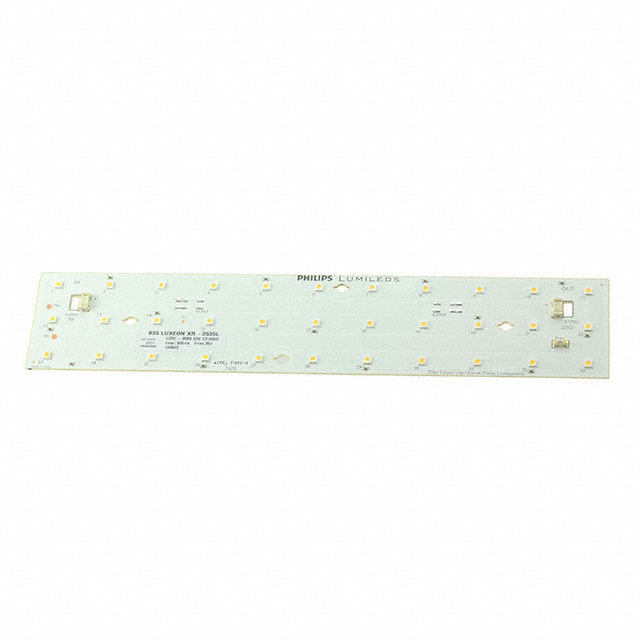

L219-3080006FV0C00
