L2C2-35801216E2300
LED COB LUXEON WARM WHT SQ 3500KManufacturer: Lumileds
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

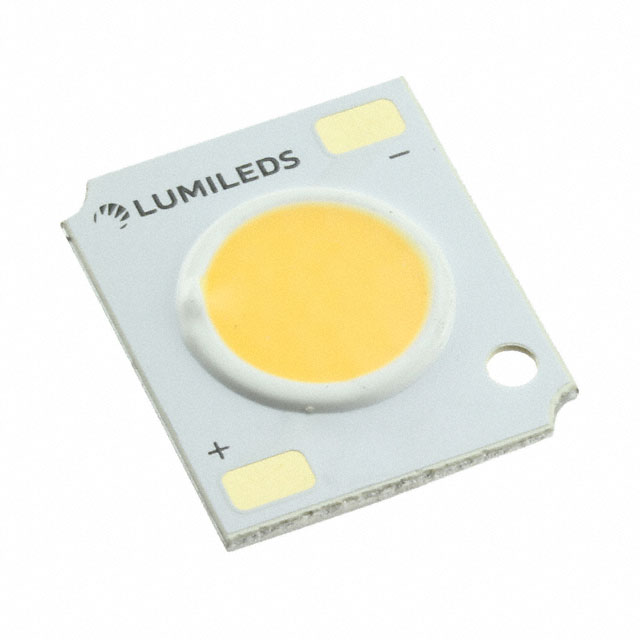

Lumileds LUXEON CoB Core Range L2C2-35801216E2300. This Chip On Board (COB) LED module features a 3500K warm white color temperature with a 3-step MacAdam ellipse for consistent color. The square light-emitting surface (LES) has a 23.00mm diameter. The component is rated for a maximum current of 3.2A and a test current of 1.6A, achieving a luminous efficacy of 134 lm/W at 85°C. Typical luminous flux is 7525 lumens. With a forward voltage of 35V (typ) and a CRI of 80, this module is suitable for general illumination, architectural lighting, and retail display applications. The dimensions are 28.00mm x 28.00mm with a height of 1.50mm. The viewing angle is 115°. Supplied in a tube.
Additional Information
Series: LUXEON CoB Core RangeRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 28.00mm L x 28.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 35V |
| Height | 1.50mm |
| Current - Test | 1.6A |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 3.2A |
| Lumens/Watt @ Current - Test | 134 lm/W |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 23.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 7525lm (Typ) |
