L219-4080006FV0C00
LED ENG LUXEON WH LNR STR 4000KManufacturer: Lumileds
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

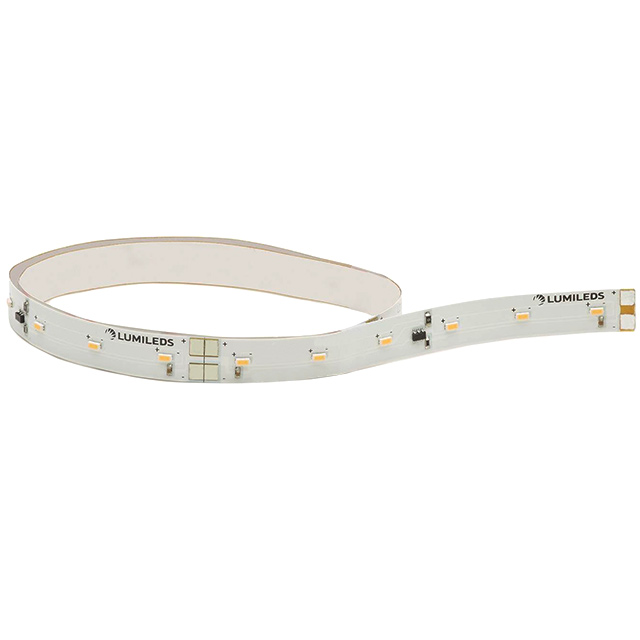

Lumileds LUXEON XF-3014 CV is a neutral white, flexible linear LED strip designed for high-performance lighting applications. This LED engine operates with a typical forward voltage of 24V and a test current of 45mA, delivering a luminous flux of 112lm at 104 lm/W. Featuring a 4000K correlated color temperature (CCT) and a Color Rendering Index (CRI) of 80, it provides accurate color reproduction. The component is packaged as a strip, measuring 96.00mm in length and 10.00mm in width, with a flat lens type. Its robust design is suitable for use in general lighting, architectural lighting, and signage industries. The Lumileds L219-4080006FV0C00 exemplifies efficient and reliable LED illumination.
Additional Information
Series: LUXEON XF-3014 CVRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 96.00mm L x 10.00mm W |
| Type | LED Engine |
| Configuration | Linear Light Strip, Flexible |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | - |
| Current - Test | 45mA |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 104 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 112lm (Typ) |
