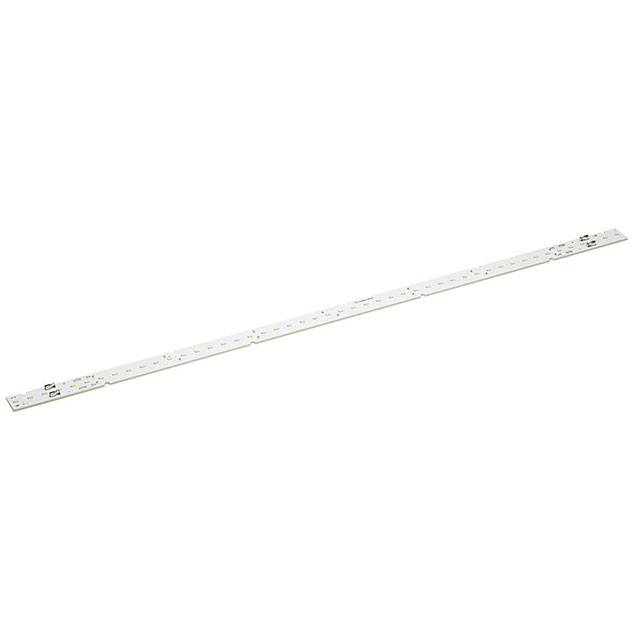

L218-4090024C30000
LED MOD LUXEON WH LNR STR 4000KManufacturer: Lumileds
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules LED Module LUXEON XR-3020 White, Neutral Linear Light Strip
Additional Information
Series: LUXEON XR-3020RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 279.20mm L x 20.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 34.8V |
| Height | 3.00mm |
| Current - Test | 200mA |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 480mA |
| Lumens/Watt @ Current - Test | 128 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 45°C |
| Luminous Flux @ Current/Temperature | 890lm (Typ) |
