L202-5080033C30000

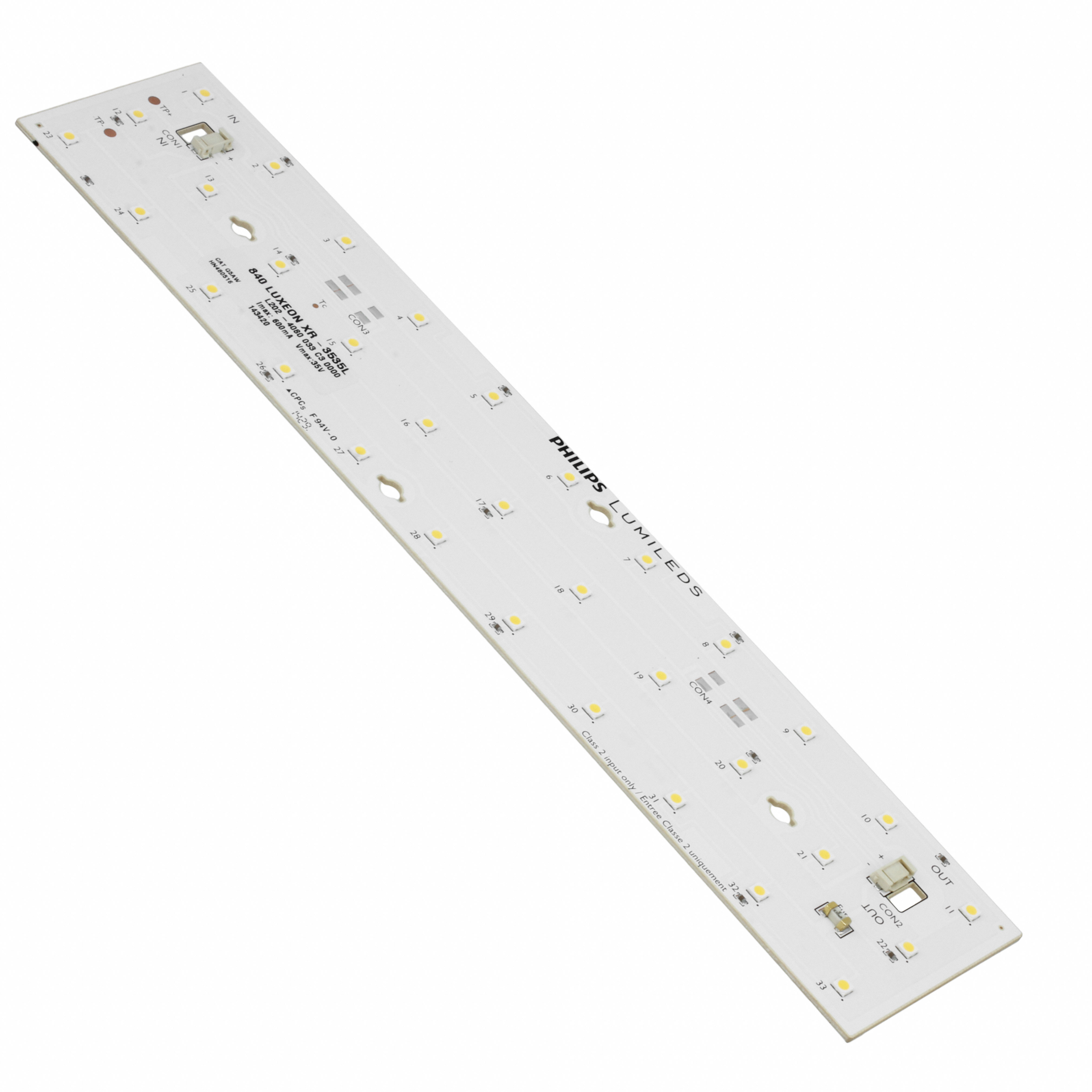

LED MOD LUXEON WH LNR STR 5000KManufacturer: Lumileds
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules LED Module LUXEON XR-3535L White, Cool Linear Light Strip
Additional Information
Series: LUXEON XR-3535LRoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 280.00mm L x 55.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 33V |
| Height | 1.20mm |
| Current - Test | 300mA |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 600mA |
| Lumens/Watt @ Current - Test | 152 lm/W |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1502lm (Typ) |
Request a Quote
Clients Also Buy
L202-3080033C30000

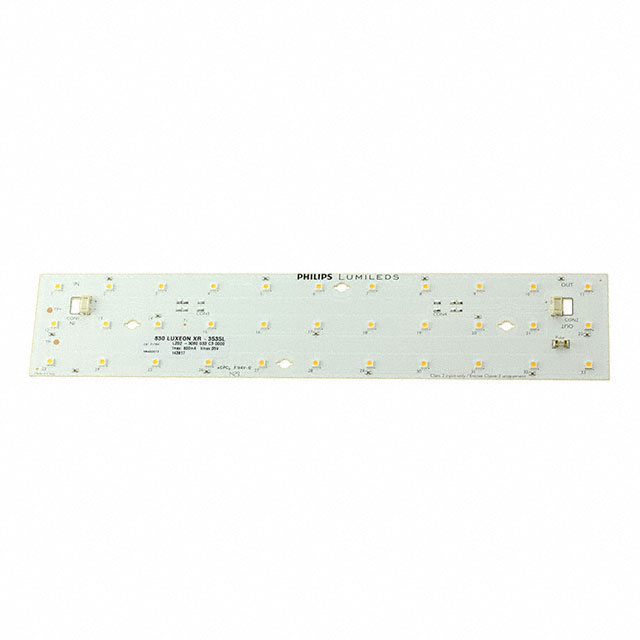

LED MOD LUXEON WM WH RECT 3000K
