SSP-LX6144A9UC
LED LUXLED WHITE 6SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED White Lighting
Quality Control: Learn More
Lumex Opto/Components Inc. LuxLED™ series white LED, part number SSP-LX6144A9UC. This 6-SMD, Flat Leads package component is designed for surface mount applications. It operates with a typical forward voltage of 3.4V and a test current of 120mA, delivering 2 lumens with a narrow 10° viewing angle. The maximum continuous current rating is 250mA. This component is suitable for applications requiring precise directional illumination within the automotive and industrial sectors. The package dimensions are 15.60mm L x 11.20mm W, with a seated height of up to 7.60mm. Supplied in tube packaging.
Additional Information
Series: LuxLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD, Flat Leads |
| Color | White |
| Size / Dimension | 0.614"" L x 0.441"" W (15.60mm x 11.20mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Current - Test | 120mA |
| Viewing Angle | 10° |
| Current - Max | 250mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 5 lm/W |
| Height - Seated (Max) | 0.299"" (7.60mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 2lm (Typ) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

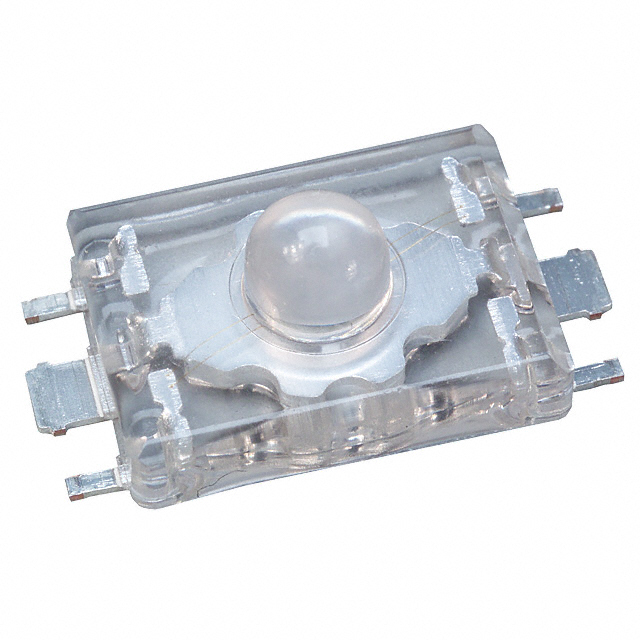

SSP-LX6144A2UPC
LED LUXLED GREEN 525NM SMD

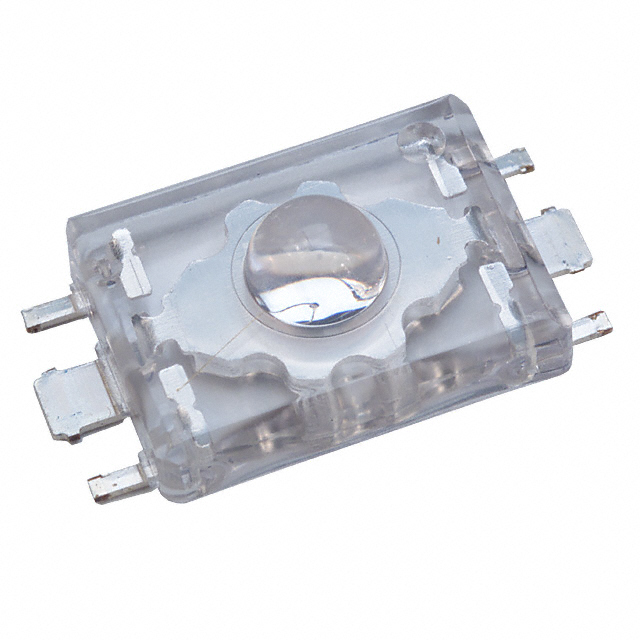

SSP-LX6144A3SC
LED LUXLED YELLOW 590NM SMD

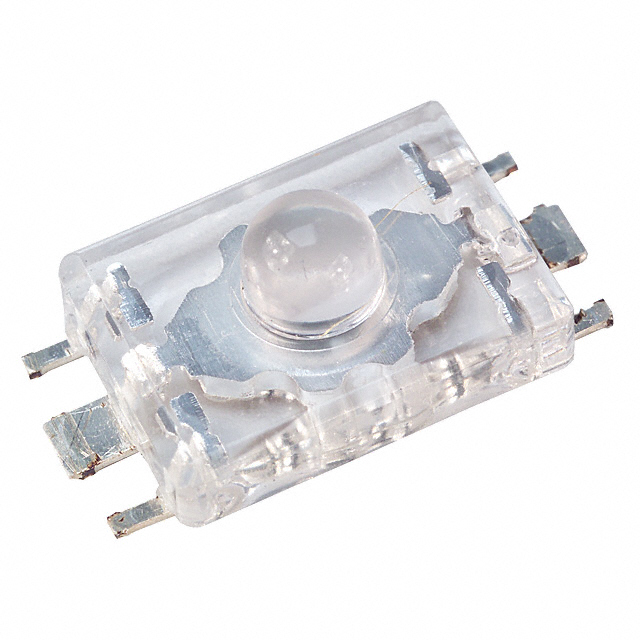

SSP-LX6144A6UC
