SSL-LXA228YC
LED YELLOW CLEAR AXIAL T/H AXIALManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

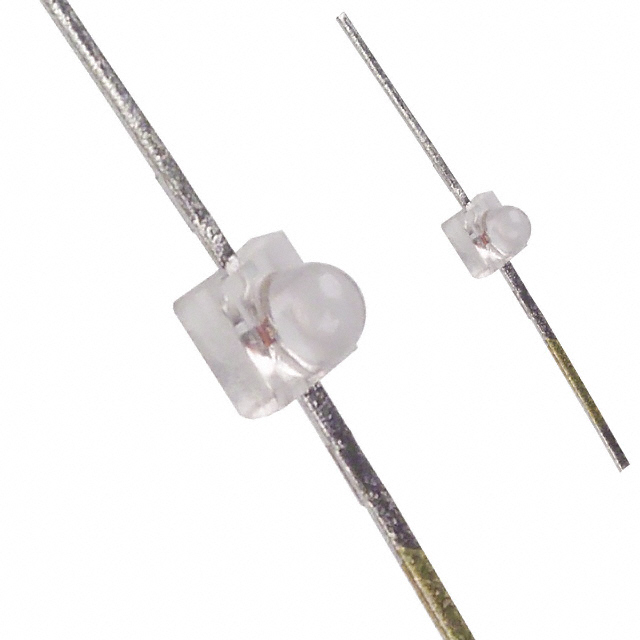

Lumex Opto/Components Inc. SSL-LXA228YC is a discrete yellow LED with a standard configuration, designed for through-hole mounting via axial, flat leads. This component features a clear, colorless lens with a domed top, measuring 1.90mm in diameter, contributing to its 25° viewing angle. The forward voltage (Vf) is typically 2.1V, with a test current of 20mA, yielding a millicandela rating of 30mcd. The peak wavelength is 585nm. Its dimensions are 2.50mm L x 2.00mm W, with a maximum height of 2.80mm. This component is commonly utilized in industrial automation, telecommunications infrastructure, and medical equipment for status indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Yellow |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 30mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 25° |
| Height (Max) | 2.80mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Axial |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
