SSL-LXA228SRC
LED RED CLEAR AXIAL T/H AXIALManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

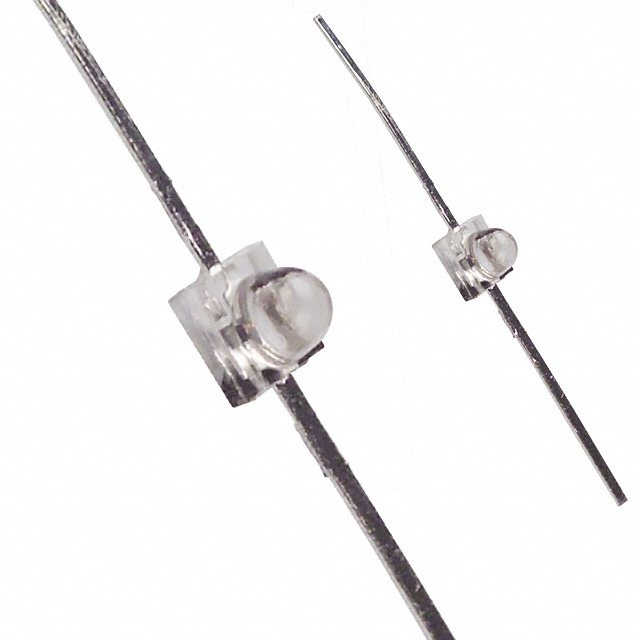

Lumex Opto/Components Inc. SSL-LXA228SRC is a through-hole, red LED designed for discrete indication applications. This axial component features flat leads and a colorless, clear, domed lens with a 1.90mm diameter. The LED exhibits a forward voltage of 1.7V (typ) and a peak wavelength of 660nm, delivering a typical luminous intensity of 600mcd at a test current of 20mA. Its compact dimensions of 2.50mm L x 2.00mm W and a maximum height of 2.80mm make it suitable for dense PCB layouts. With a viewing angle of 25°, this RoHS-compliant component finds application in industrial control, consumer electronics, and medical equipment for status indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Red |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 600mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 25° |
| Height (Max) | 2.80mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Axial |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
