SSL-LXA228SGC
LED GREEN CLEAR AXIAL T/H AXIALManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

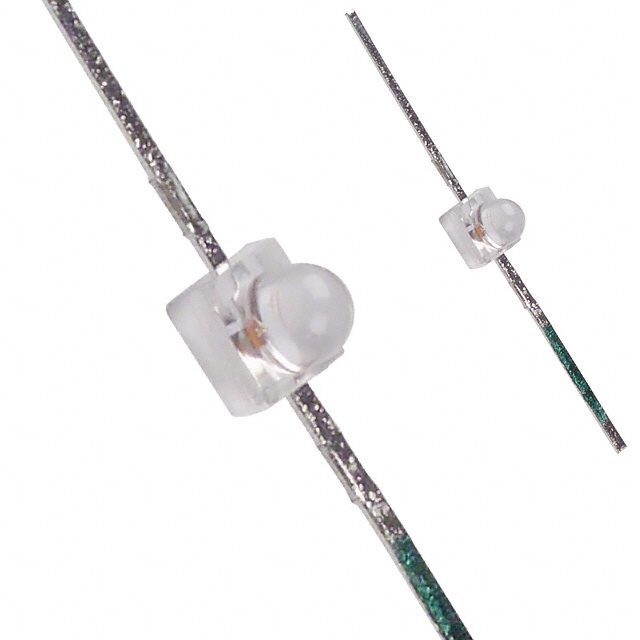

Lumex Opto/Components Inc. SSL-LXA228SGC is a green, through-hole, axial LED designed for discrete indication applications. This component features a clear, colorless lens with a domed top and a 2.50mm L x 2.00mm W footprint, with a maximum height of 2.80mm. The SSL-LXA228SGC operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a millicandela rating of 50mcd at a 565nm peak wavelength. It offers a 25° viewing angle. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Green |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 50mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 25° |
| Height (Max) | 2.80mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Axial |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
