SSL-LXA228ID-TR21
LED RED DIFF AXIAL SMD BOT ENTManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

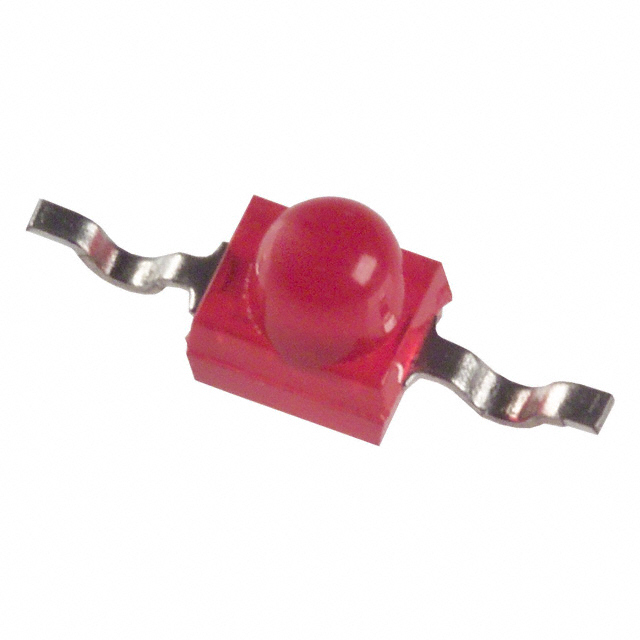

Lumex Opto/Components Inc. SSL-LXA228ID-TR21 is a red diffused axial LED with a 2V forward voltage. This discrete indicator component is designed for surface mount applications with a bottom entry yoke bend configuration. It features a 1.90mm diameter red lens with a domed top, providing a 50° viewing angle and a typical luminous intensity of 12mcd at 20mA. The component's dimensions are 2.50mm L x 2.00mm W, with a maximum height of 2.90mm. Supplied in Tape & Reel (TR) packaging, this LED is suitable for various industrial automation and control systems. The peak wavelength is 635nm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Yoke Bend |
| Color | Red |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 12mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 50° |
| Height (Max) | 2.90mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Axial |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
