SSL-LXA228ID
LED RED DIFFUSED AXIAL T/H AXIALManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

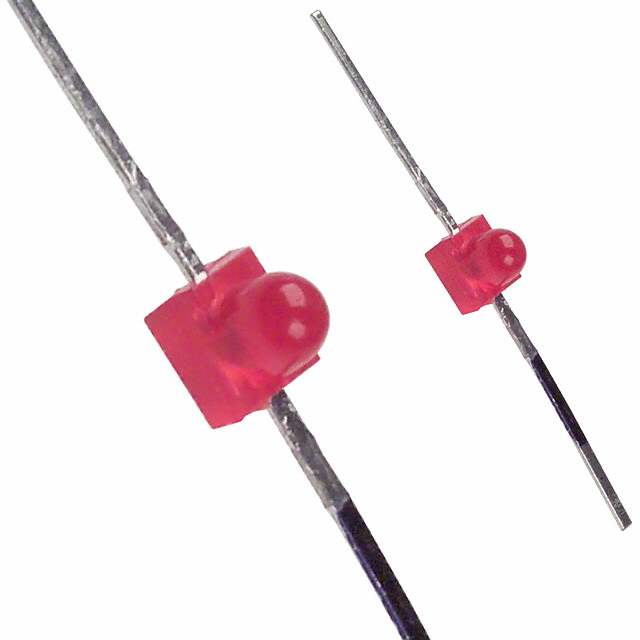

Lumex Opto/Components Inc. SSL-LXA228ID is a red diffused LED designed for through-hole mounting with axial flat leads. This discrete LED features a standard configuration, a 2V typical forward voltage, and a 20mA test current. The round, domed top lens has a 1.90mm diameter and a diffused finish, providing a 50° viewing angle. With a 25mcd millicandela rating and a peak wavelength of 635nm, this component is suitable for indication applications in industrial and consumer electronics. The SSL-LXA228ID is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Red |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 25mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 50° |
| Height (Max) | 2.80mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Axial |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
