SSL-LXA228IC-TR31
LED RED CLR AXIAL SMD BOTTOM ENTManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

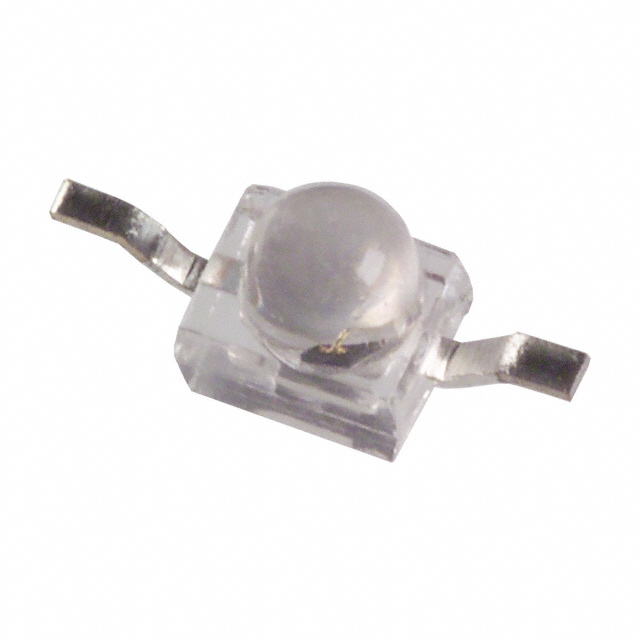

Lumex Opto/Components Inc. SSL-LXA228IC-TR31 is a discrete red LED designed for indication applications. This component features a clear, colorless lens with a domed top, measuring 1.90mm in diameter. It is housed in a 2-SMD, Z-Bend package with a bottom entry surface mount configuration. The LED exhibits a typical forward voltage of 2V and a peak wavelength of 635nm, delivering a luminous intensity of 60mcd at a test current of 20mA. The viewing angle is 25 degrees. This component is supplied in Tape & Reel packaging. Applications include industrial automation, medical devices, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Red |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 60mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 25° |
| Height (Max) | 2.90mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Axial |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
