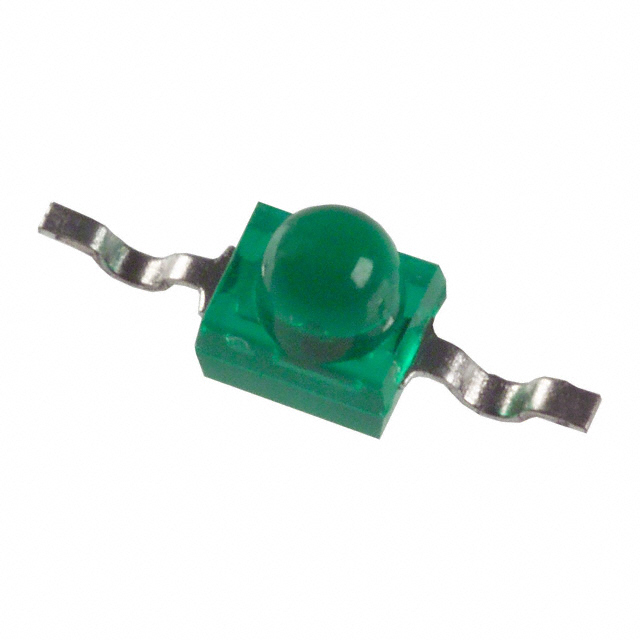

SSL-LXA228GD-TR21
LED GREEN DIFFUSED AXIAL SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lumex Opto/Components Inc. SSL-LXA228GD-TR21 is a green diffused LED designed for surface mount applications. This component features a 2.1V forward voltage (typ.) and a 20mA test current, delivering a typical luminous intensity of 4mcd. The LED is housed in a 2-SMD, Yoke Bend package, with a diffused lens measuring 1.90mm in diameter and a 50° viewing angle. Its compact dimensions of 2.50mm L x 2.00mm W and a maximum height of 2.90mm make it suitable for space-constrained designs. The SSL-LXA228GD-TR21 is supplied on tape and reel for automated assembly. This discrete LED is commonly utilized in industrial control, consumer electronics, and medical equipment for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Yoke Bend |
| Color | Green |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 4mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 50° |
| Height (Max) | 2.90mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Axial |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
