SSL-LXA227YD-5V
LED YL DIFFUSED AXIAL T/H AXIALManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

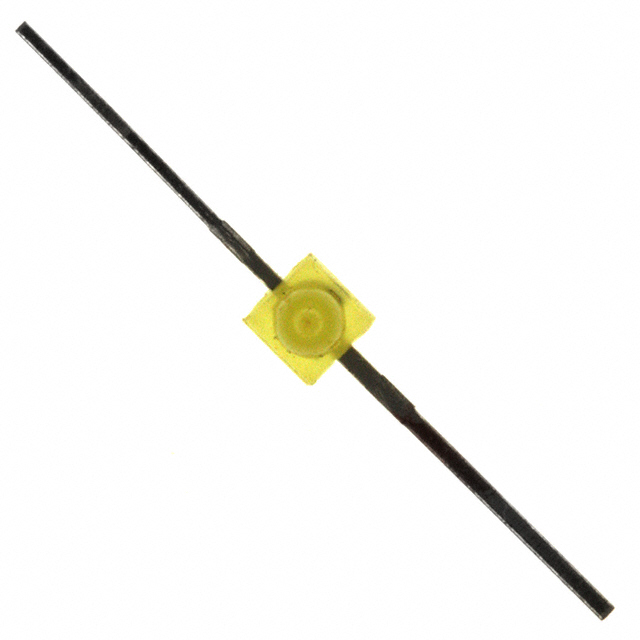

Lumex Opto/Components Inc. SSL-LXA227YD-5V is a yellow, diffused, through-hole LED with axial, flat leads. This discrete indicator features a 5V forward voltage and a typical test current of 20mA, producing 8mcd of luminous intensity at peak wavelength of 585nm. The LED is housed in a standard axial package with a round, domed top lens measuring 1.80mm in diameter. Its diffused lens provides a wide 60° viewing angle. This component is suitable for general indication and panel mounting applications across various electronic equipment and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Yellow |
| Size / Dimension | 2.20mm L x 2.10mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 5V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 2.72mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Axial |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
