SSL-LXA227GD-5V
LED GRN DIFFUSED AXIAL T/H AXIALManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

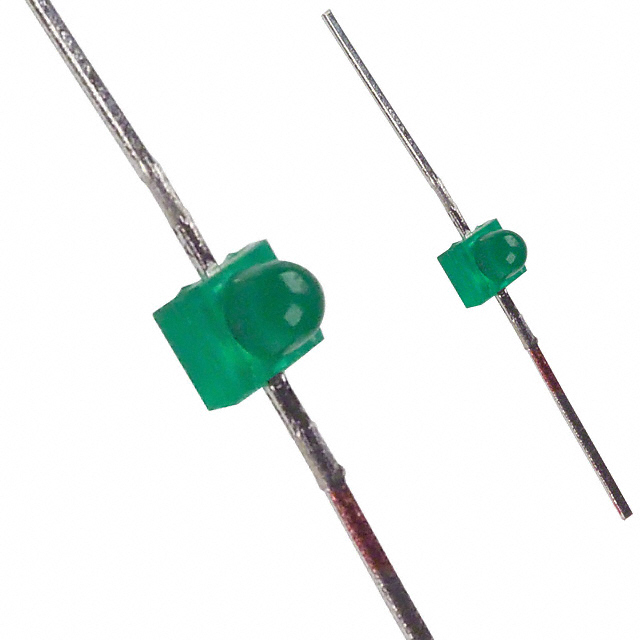

Lumex Opto/Components Inc. SSL-LXA227GD-5V is a green diffused axial through-hole LED designed for indication applications. Featuring flat leads and a standard axial package, this component operates with a typical forward voltage of 5V and a test current of 20mA, yielding a millicandela rating of 8mcd. The LED's lens is green, diffused, and round with a domed top, measuring 1.80mm in diameter. Its dimensions are 2.20mm in length and 2.10mm in width, with a maximum height of 2.72mm. The viewing angle is 60°. This component is commonly utilized in industrial automation, consumer electronics, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Green |
| Size / Dimension | 2.20mm L x 2.10mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 5V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 2.72mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Axial |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
