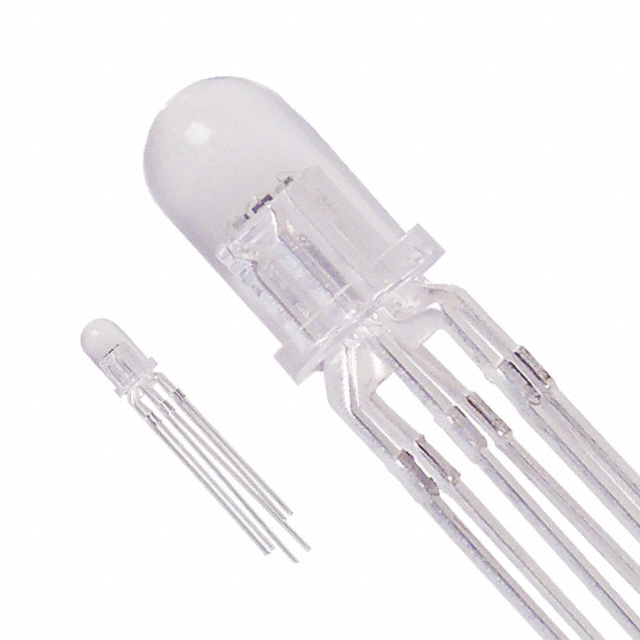

SSL-LX5099SIUBSUGB
LED RGB CLEAR T-1 3/4 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lumex Opto/Components Inc. SSL-LX5099SIUBSUGB is a discrete RGB LED with a T-1 3/4 package. This through-hole component features a common cathode configuration, providing independent control of Red, Green, and Blue light output. Typical forward voltages are 1.9V for Red, 2.1V for Green, and 3.65V for Blue, with a standard test current of 20mA for each color. The device offers luminous intensity ratings of 600mcd (Red), 450mcd (Green), and 150mcd (Blue) at the specified test current. Peak wavelengths are 636nm (Red), 574nm (Green), and 470nm (Blue), with a 30° viewing angle and a clear, domed-top lens. This component is suitable for applications in industrial automation, consumer electronics, and automotive lighting. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 6 Leads |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 600mcd Red, 450mcd Green, 150mcd Blue |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 2.1V Green, 3.65V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 30° |
| Height (Max) | 11.00mm |
| Wavelength - Peak | 636nm Red, 574nm Green, 470nm Blue |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
