SSL-LX5093UWC/B
LED WHITE CLEAR T-1 3/4 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

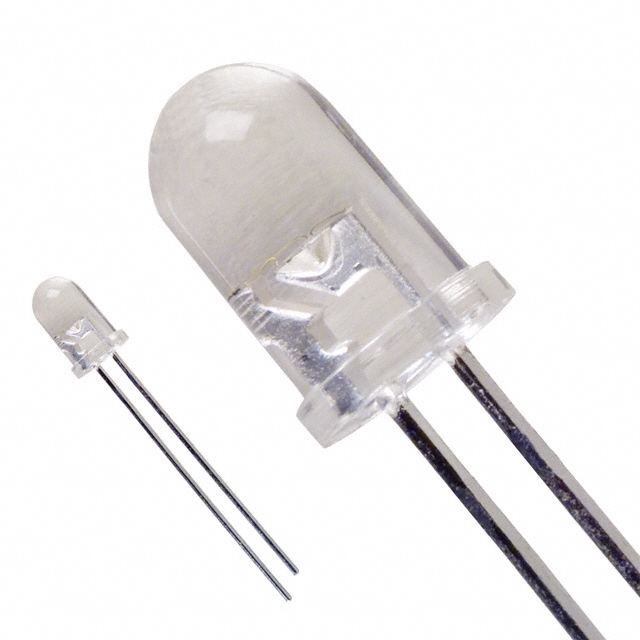

Lumex Opto/Components Inc. SSL-LX5093UWC-B is a through-hole mounted, white, clear lens LED with a T-1 3/4 package. This discrete LED features a standard configuration, a round, domed top lens, and a forward voltage of 3.6V typical at 20mA. It offers a luminous intensity of 1700mcd and a viewing angle of 20°. This component is suitable for various indication applications in industrial, medical, and consumer electronics markets. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1700mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 20° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
