SSL-LX5093SRD/D
LED RED DIFFUSED T-1 3/4 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

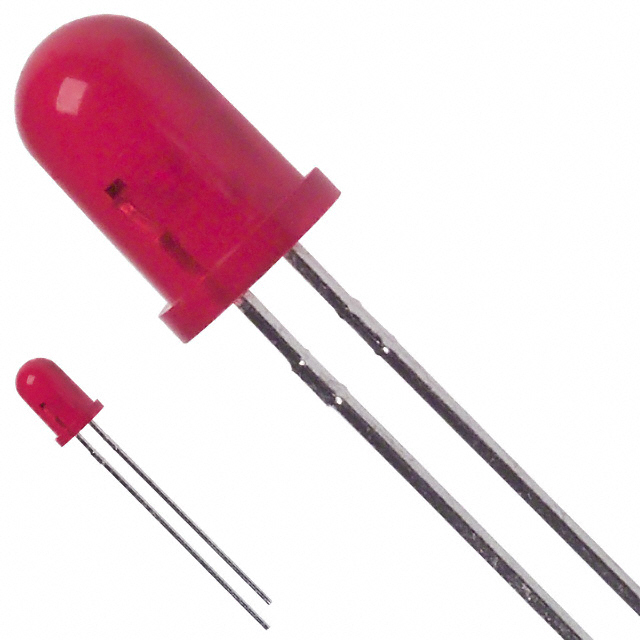

Lumex Opto/Components Inc. SSL-LX5093SRD-D is a red diffused T-1 3/4 through-hole LED engineered for reliable indication. This discrete LED features a standard configuration with a forward voltage of 1.7V (typical) at a test current of 20mA. It delivers a millicandela rating of 250mcd with a spectral peak wavelength of 660nm, producing a distinct red output. The T-1 3/4 package houses a round, diffused lens with a domed top, providing a 60° viewing angle. This component is suitable for applications in industrial automation, medical equipment, and consumer electronics where clear visual feedback is essential. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 250mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
