SSL-LX5093SRC/DW
LED RED CLEAR T-1 3/4 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

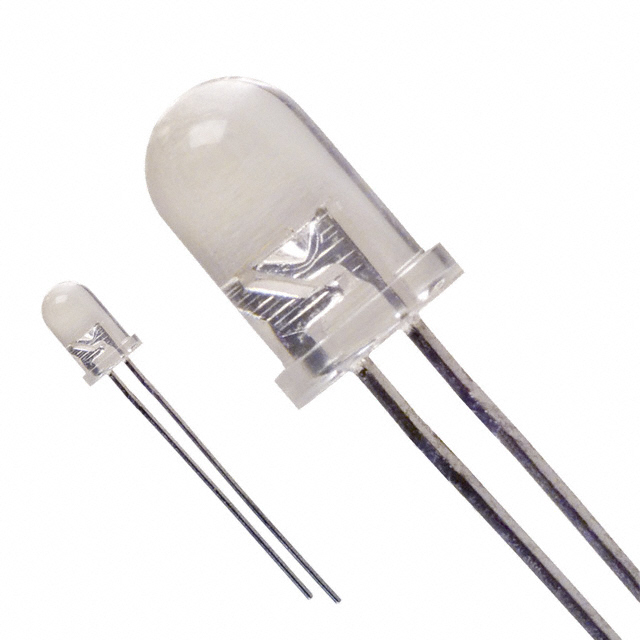

Lumex Opto/Components Inc. SSL-LX5093SRC-DW is a through-hole mounted red LED with a clear, colorless lens. This discrete LED features a T-1 3/4 package and radial mounting configuration. It operates with a typical forward voltage (Vf) of 1.7V and a test current of 20mA, achieving a luminous intensity of 1800 millicandelas. The dominant wavelength is 660nm, and the viewing angle is 30 degrees. This component is suitable for general indication applications across various industries, including automotive, industrial automation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1800mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
