SSL-LX5093SRC/DU
LED RED CLEAR T-1 3/4 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

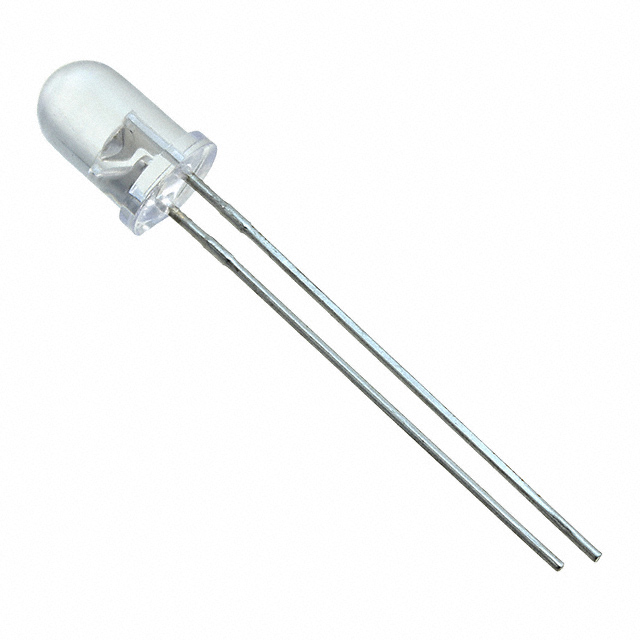

Lumex Opto/Components Inc. SSL-LX5093SRC-DU is a discrete red LED with a clear, domed T-1 3/4 lens. This through-hole component operates with a typical forward voltage of 1.7V and a test current of 20mA, achieving a luminous intensity of 1200mcd. The LED features a peak wavelength of 660nm and a viewing angle of 30 degrees, making it suitable for general indication applications. Its radial package and standard configuration facilitate integration into various electronic designs. Industries including industrial automation, consumer electronics, and telecommunications commonly utilize this component for status indication and signaling.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
