SSL-LX5093HD-TR
LED RED DIFFUSED T-1 3/4 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

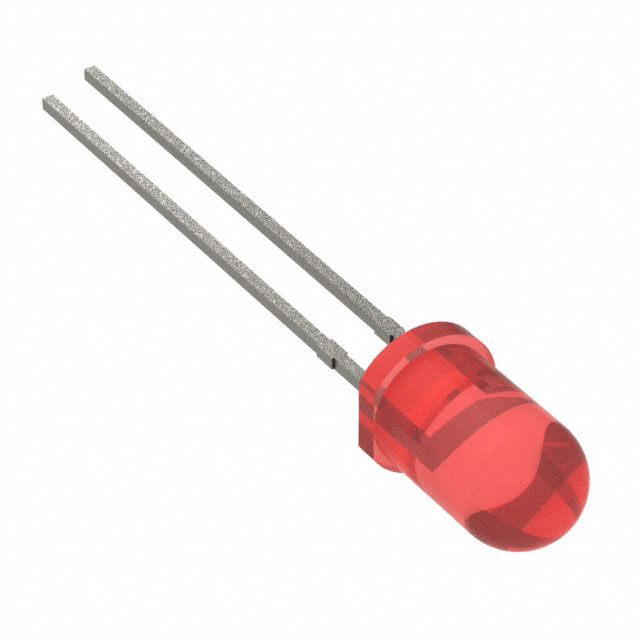

Lumex Opto/Components Inc. SSL-LX5093HD-TR is a red diffused T-1 3/4 through-hole LED designed for general indication applications. This discrete LED features a forward voltage of 2.1V (typical) at a test current of 20mA, producing a luminous intensity of 10mcd. The component utilizes a 5mm, T-1 3/4 radial package with a round, domed top lens that is diffused for wide viewing. The peak wavelength is 700nm, and the viewing angle is 80°. This device is supplied on tape and reel (TR) for automated assembly. Industries utilizing this component often include industrial automation, consumer electronics, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 80° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
