SSL-LX5093HD
LED RED DIFFUSED T-1 3/4 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

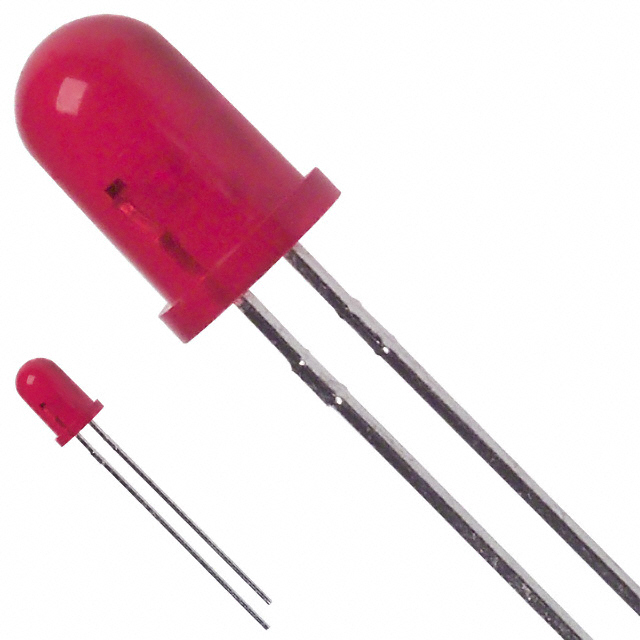

Lumex Opto/Components Inc. SSL-LX5093HD is a red diffused T-1 3/4 through-hole LED with a forward voltage of 2.25V at a test current of 20mA. This discrete LED indication component offers a peak wavelength of 700nm and a millicandela rating of 6mcd. The diffused lens style, with a round, domed top, provides a wide viewing angle of 30 degrees. Suitable for general indication and status signaling applications across various industries, including consumer electronics and industrial automation, this component is supplied in bulk packaging. The radial package design facilitates straightforward mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
