SSL-LX5093BHD
LED RED DIFF T-1 3/4 BLINKNG T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lumex Opto/Components Inc. QuasarBrite series SSL-LX5093BHD is a red, diffused, T-1 3/4 through-hole LED with a dominant wavelength of 700nm. This component features a typical forward voltage of 3V and a forward current of 20mA, providing a luminous intensity of 5mcd. The unit includes integrated flashing functionality. Its radial package is designed for standard mounting. The LED's 60° viewing angle and domed top lens ensure reliable visual indication in applications such as industrial control panels, consumer electronics, and safety systems.
Additional Information
Series: QuasarBriteRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Flashing |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 BLINKING |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
Clients Also Buy

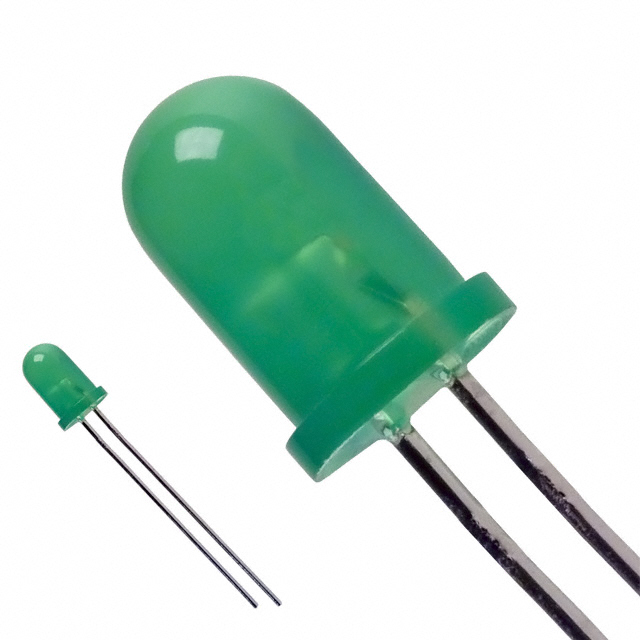

SSL-LX5093BGD
LED GRN DIFF T-1 3/4 BLINKNG T/H
SSL-LX5093BID
LED RED DIFF T-1 3/4 BLINKNG T/H

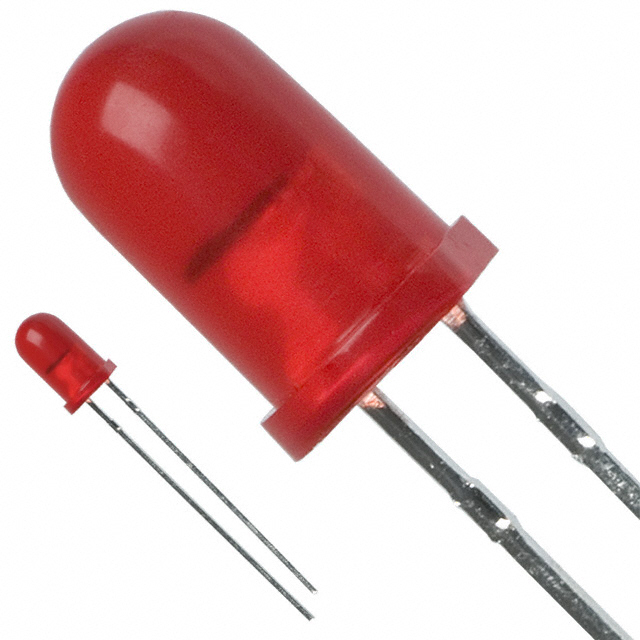

SSL-LX5093BSRD
