SSL-LX3054HD
LED RED DIFFUSED T-1 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

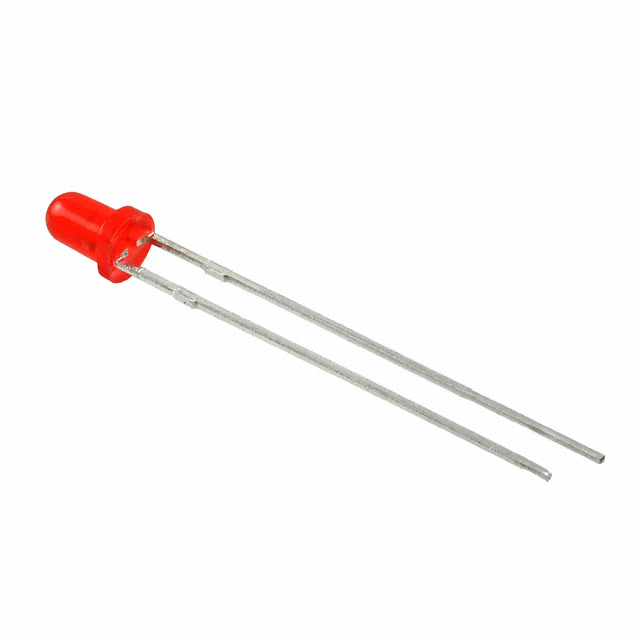

Lumex Opto/Components Inc. SSL-LX3054HD is a red diffused T-1 through-hole LED designed for reliable indication. This discrete LED component operates with a typical forward voltage of 2V and a standard test current of 20mA, yielding a luminous intensity of 3mcd. The 3mm T-1 package features a round, domed top with a diffused lens, providing a 60° viewing angle. Its red lens and 700nm peak wavelength are ideal for applications requiring clear visual status indicators in sectors such as industrial automation, consumer electronics, and medical devices. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 5.25mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
