SSL-LX3044SRC/D
LED RED CLEAR T-1 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

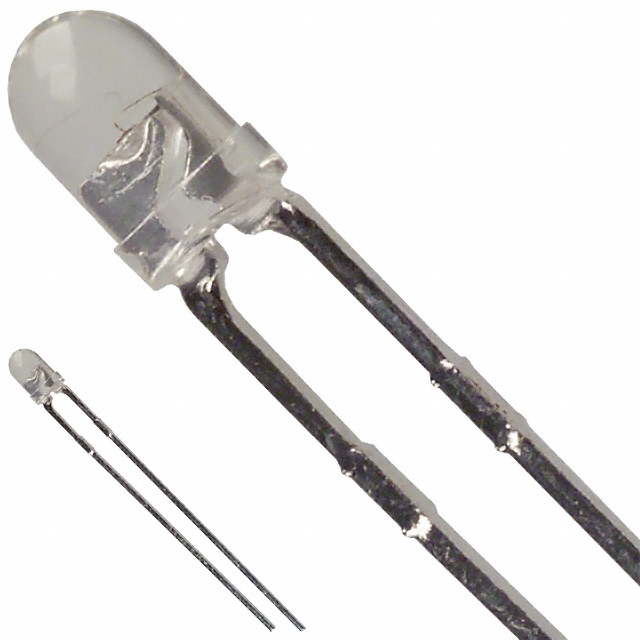

Lumex Opto/Components Inc. SSL-LX3044SRC-D is a through-hole mounted red LED, part of the T-1 size package. This discrete LED features a clear, colorless lens with a domed top and a 3mm diameter. It operates with a typical forward voltage of 1.8V and a test current of 20mA, achieving a luminous intensity of 600mcd. The dominant wavelength is 660nm, and it provides a viewing angle of 30 degrees. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 600mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 4.60mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
