SSL-LX3044HD
LED RED DIFFUSED T-1 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

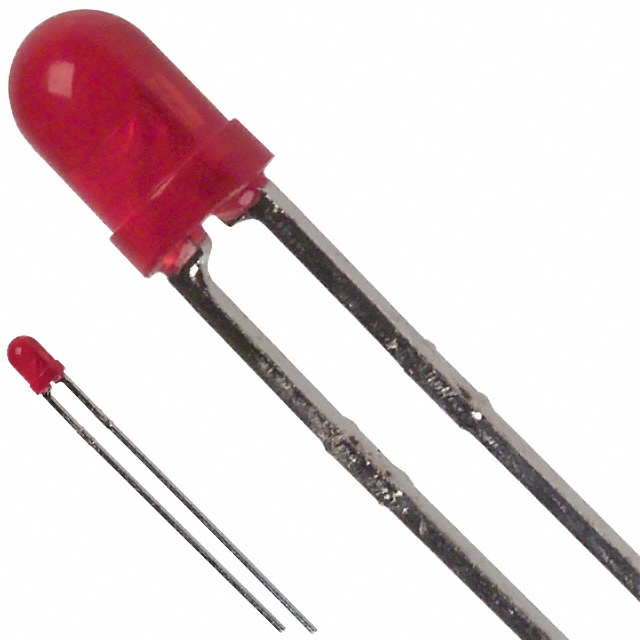

Lumex Opto/Components Inc. SSL-LX3044HD is a red diffused T-1 through-hole LED, designed for discrete indication applications. This component features a standard radial package with a round, domed top lens measuring 3mm in diameter. The diffused lens style ensures a wide 60° viewing angle. Key electrical specifications include a typical forward voltage (Vf) of 2V and a test current of 20mA, resulting in a millicandela rating of 6mcd. The peak wavelength is 700nm. This component is commonly utilized in industrial automation, consumer electronics, and medical devices where reliable visual feedback is critical. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 4.60mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
