SSL-LX20R6SRD
LED RED DIFFUSED 6CHIP JUMBO T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

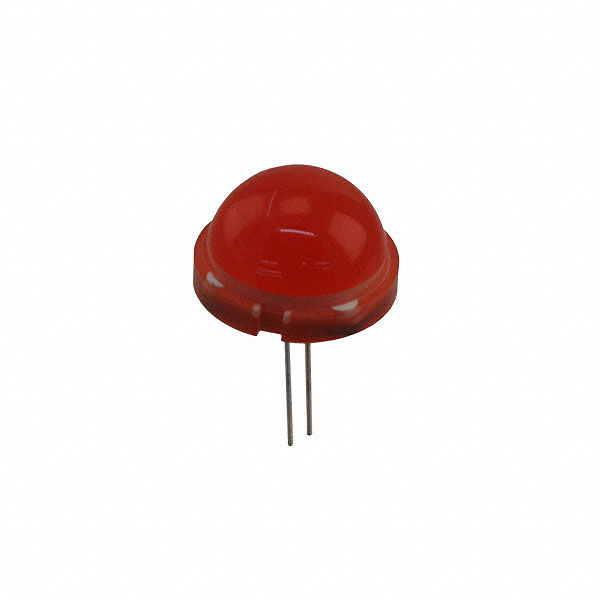

Lumex Opto/Components Inc. SSL-LX20R6SRD is a diffused red LED with a prominent 20mm diameter lens and a through-hole mounting configuration. This component features a standard radial package, designed for robust integration into various electronic assemblies. It operates with a typical forward voltage of 5.1V and a test current of 20mA, delivering a millicandela rating of 60mcd. The LED's diffused lens enhances light dispersion, providing a wide viewing angle of 120 degrees, and its red lens color is consistent with the emitted light spectrum peaking at 660nm. The 6-CHIP JUMBO package contributes to its optical output. This component finds application in industrial automation, consumer electronics, and medical devices where clear visual indication is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 60mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 5.1V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 13.50mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 6-CHIP JUMBO |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 20.00mm Dia |
