SSL-LX203CYT
LED YLW CLR T-2MM CERM STEM T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

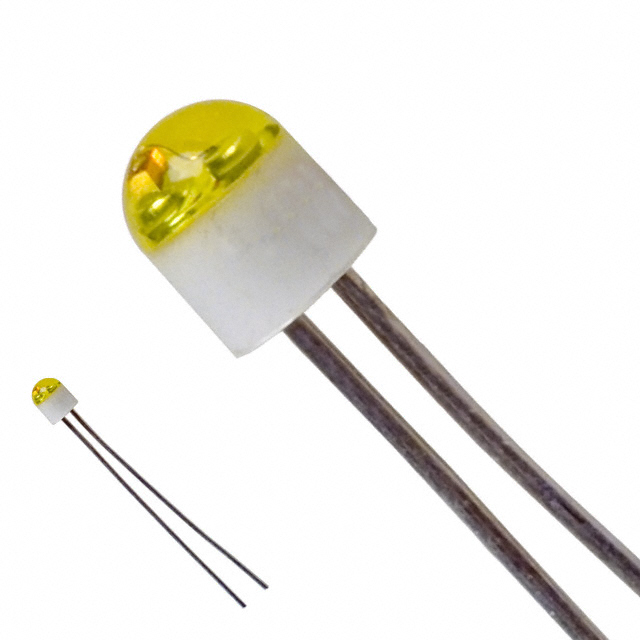

Lumex Opto/Components Inc. SSL-LX203CYT is a yellow, clear lens, through-hole mounted LED with a 2.00mm diameter and a domed top. This discrete LED features a standard configuration with a forward voltage of 2.1V (typical) and a peak wavelength of 585nm. The millicandela rating is 6mcd at a test current of 20mA. The viewing angle is a wide 160 degrees. This component is suitable for applications in industrial automation and consumer electronics. The supplier device package is a T-2mm Ceramic Stem.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 2.50mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-2mm CERAMIC STEM |
| Lens Transparency | Clear |
| Grade | - |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
| Qualification | - |
