SSL-LX203CSRT
LED RED CLR T-2MM CERM STEM T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

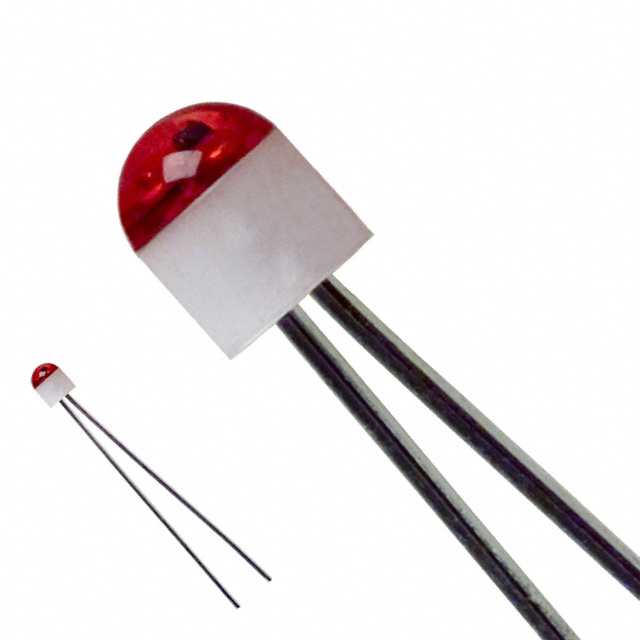

Lumex Opto/Components Inc. SSL-LX203CSRT is a Red LED designed for discrete indication applications. This through-hole component features a clear, round lens with a domed top, measuring 2.00mm in diameter. It operates with a typical forward voltage of 1.7V and a test current of 20mA, yielding a millicandela rating of 10mcd. The LED offers a wide viewing angle of 160 degrees and a peak wavelength of 660nm. Its T-2mm ceramic stem mounting type ensures robust integration into various board designs. This component is commonly utilized in industrial automation, medical equipment, and control panel instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 2.50mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-2mm CERAMIC STEM |
| Lens Transparency | Clear |
| Grade | - |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
| Qualification | - |
