SSL-LX203CIT
LED RED CLR T-2MM CERM STEM T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

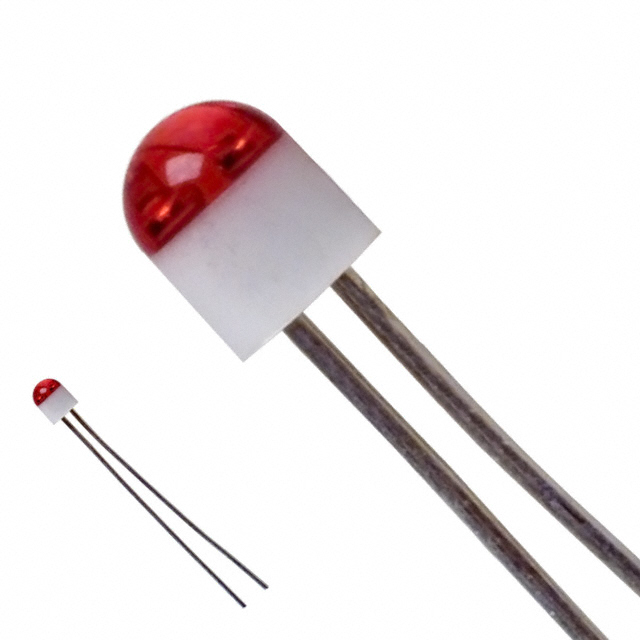

Lumex Opto/Components Inc. SSL-LX203CIT is a red, through-hole mounted Light Emitting Diode designed for discrete indication applications. This LED features a clear, 2mm diameter round lens with a domed top, emitting light at a peak wavelength of 635nm. With a typical forward voltage of 2V and a test current of 20mA, it provides a luminous intensity of 6mcd. The 160° viewing angle ensures broad visibility. The component is supplied in bulk packaging with a T-2mm ceramic stem. This reliable LED is commonly utilized in industrial control systems, consumer electronics, and automotive applications where clear visual feedback is essential.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 2.50mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-2mm CERAMIC STEM |
| Lens Transparency | Clear |
| Grade | - |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
| Qualification | - |
