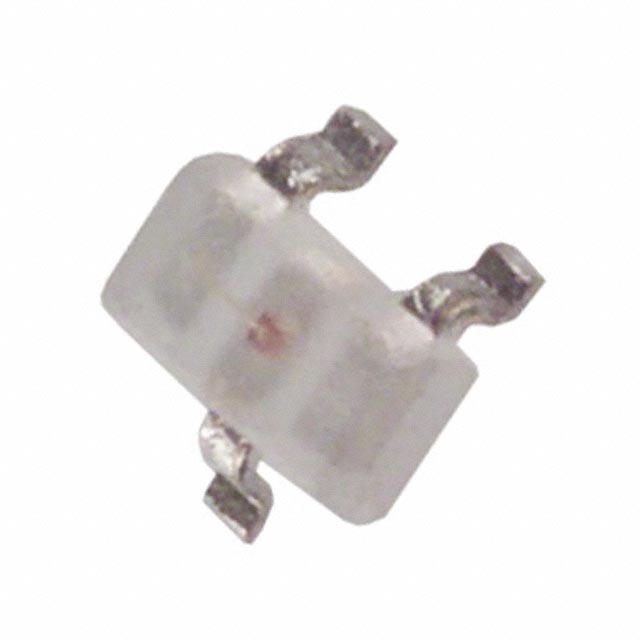

SSL-LX15GC-TR
LED GREEN CLEAR SOT23-3 SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lumex Opto/Components Inc. SSL-LX15GC-TR is a discrete surface-mount LED designed for indication applications. This component features a green emitter with a peak wavelength of 565nm and a forward voltage typical of 2.1V at 20mA test current. The LED boasts a high luminous intensity of 10mcd and a wide viewing angle of 140°, ensuring broad visibility. Housed in a compact TO-236-3, SC-59, SOT-23-3 package, it measures 3.00mm in length and 1.50mm in width, with a maximum height of 1.05mm. The clear, colorless lens has a rectangular shape with a flat top. This component is supplied on tape and reel (TR) for automated assembly, making it suitable for high-volume manufacturing in sectors such as consumer electronics, industrial controls, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Color | Green |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 1.05mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | SOT-23-3 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.00mm x 1.50mm |
