SSL-DSP5093UWC
LED WHITE CLEAR T-1 3/4 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

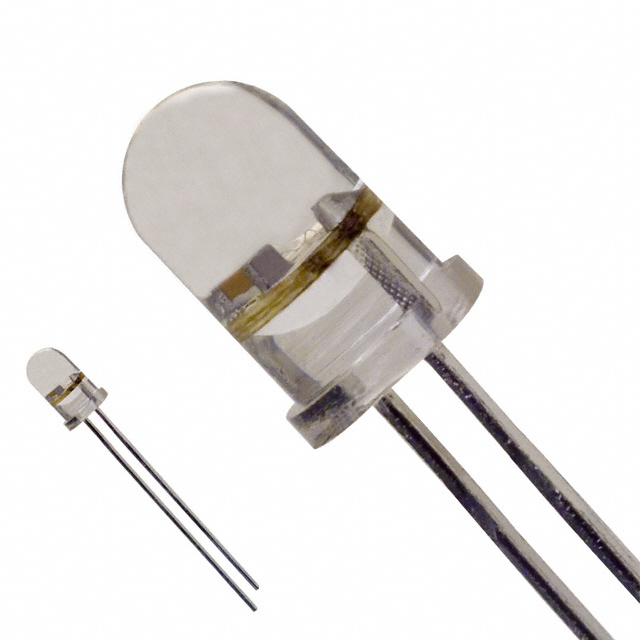

Lumex Opto/Components Inc. SSL-DSP5093UWC is a through-hole mounted white LED with a clear, domed lens. This discrete indicator component features a standard configuration with a 5mm, T-1 3/4 lens size. The forward voltage (Vf) is typically 2V, and it offers a millicandela rating of 3000mcd. The viewing angle is 30 degrees. This component is suitable for general indication applications across various electronic devices and industrial control systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | - |
| Viewing Angle | 30° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
