SSL-DSP5093SIC
LED RED CLEAR T-1 3/4 T/HManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

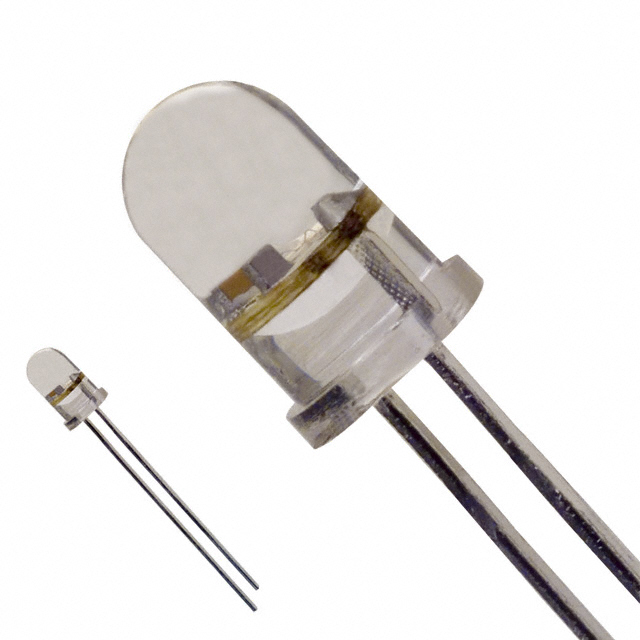

Lumex Opto/Components Inc. SSL-DSP5093SIC is a discrete red LED with a T-1 3/4 package, designed for through-hole mounting. This component features a clear, colorless lens with a domed top, offering a 30° viewing angle. It operates with a typical forward voltage of 2V and a test current of 20mA, achieving a millicandela rating of 2500mcd. The peak wavelength for this device is 636nm. This LED is commonly employed in general indication applications across various sectors, including industrial automation, consumer electronics, and automotive systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2500mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 636nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
