SML-LXT0805SRW-TR
LED RED DIFFUSED SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

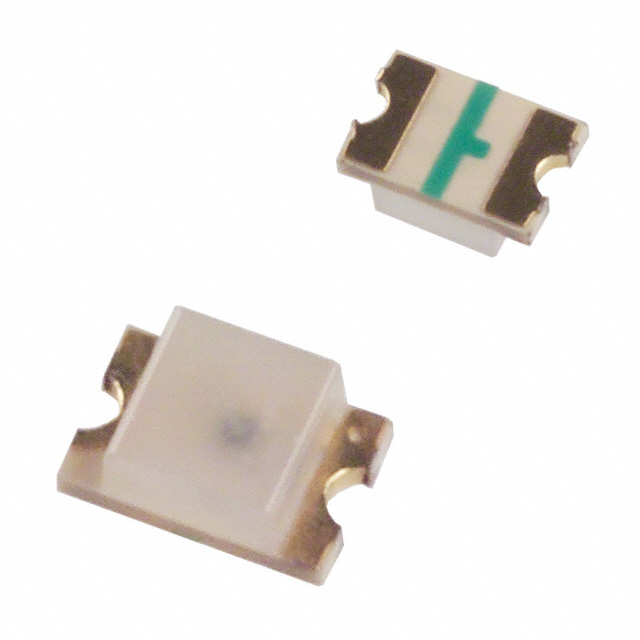

Lumex Opto/Components Inc. SML-LXT0805SRW-TR is a red diffused surface-mount LED, part of the LED Indication - Discrete category. This component features a standard configuration with a forward voltage of 1.8V typically. The LED is housed in an 0805 (2012 Metric) package, measuring 2.00mm L x 1.25mm W with a maximum height of 0.80mm. It offers a diffused lens with a white lens color and a flat-top rectangular lens style. The typical luminous intensity is rated at 21mcd at a test current of 20mA, with a wide viewing angle of 140°. The peak wavelength is 660nm. This component is supplied in Tape & Reel packaging. Applications for this LED include industrial automation, consumer electronics, and automotive lighting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Red |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 21mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 1.25mm |
